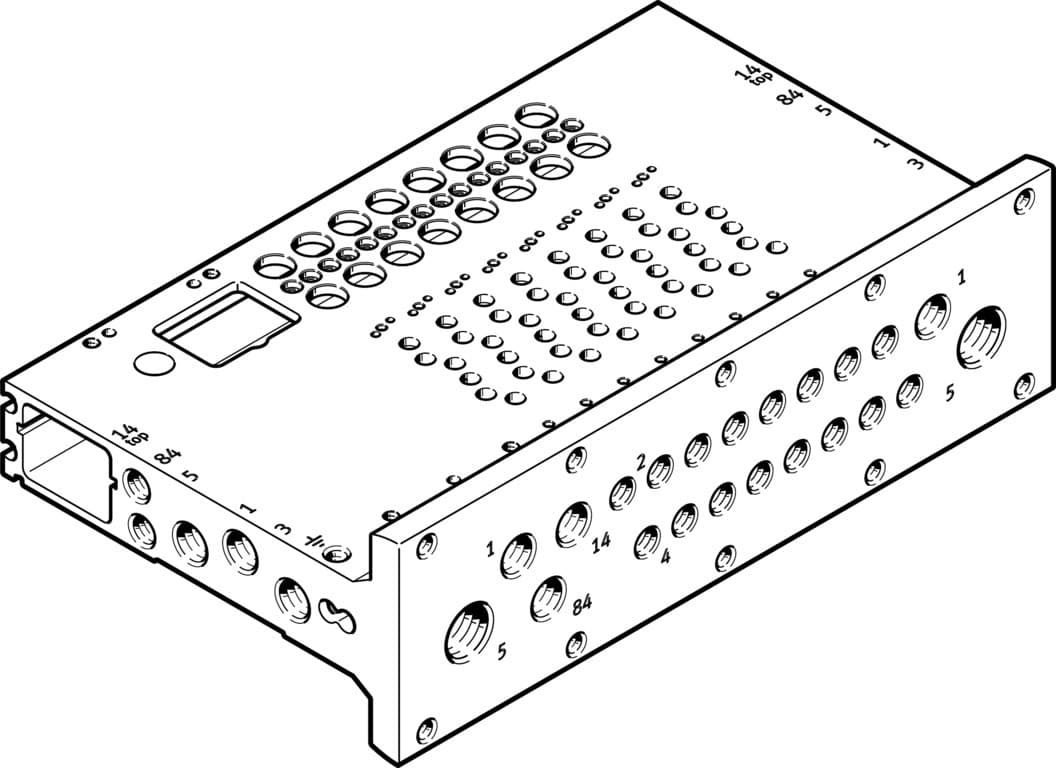

vabm-l1-14hws2-g14-24-gr
Product ID:16136
Updated: 2026/4/3
Key Features
- 1Accommodate 24 valve positions for complex pneumatic system layouts. 2、Ensure durability with moderate corrosion resistance (CRC 2). 3、Meet stringent ISO 14644-1 Cleanroom Class 6 standards. 4、Select optional mounting positions for flexible installation. 5、Guarantee environmental compliance with RoHS regulations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 24 | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Pilot air port 12/14 | M5 |
| Pilot exhaust air port 82/84 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/8 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8058347 |
Specifications may be subject to change without notice
