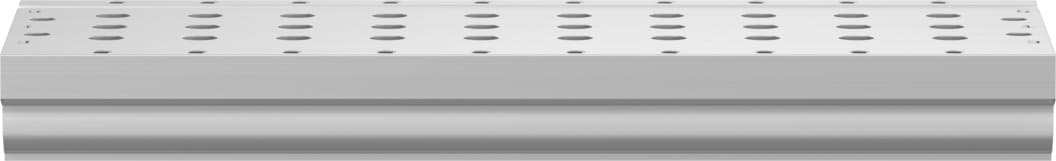

vabm-l1-14s-g14-12
Product ID:13368
Updated: 2026/4/4
Key Features
- 1Equip your system with 12 valve positions for versatile pneumatic control. 2、Feature three G 1/4 threaded connections for easy integration. 3、Achieve moderate corrosion stress resistance classified as CRC 2. 4、Meet RoHS standards for environmental sustainability. 5、Comply with RCM, CSA, and UL Recognized certifications for safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 528g |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566627 |
Specifications may be subject to change without notice
