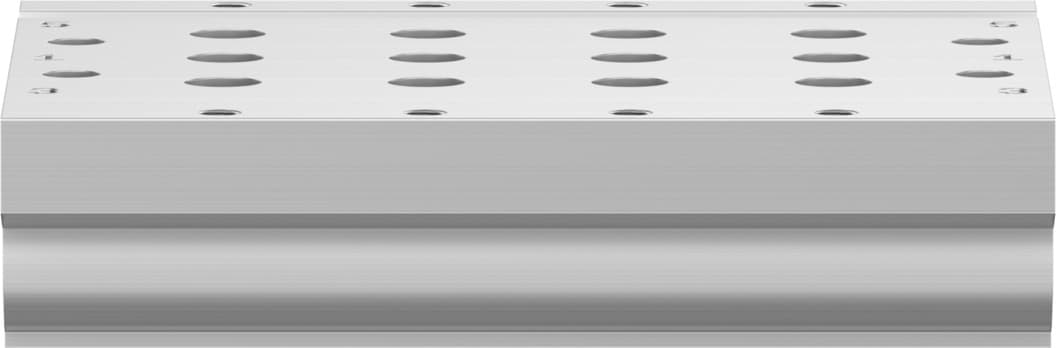

vabm-l1-14s-g14-4
Product ID:13364
Updated: 2026/4/4
Key Features
- 1Integrate 4 G1/4 pneumatic connections for diverse applications. 2、Manage systems efficiently with 16 valve positions. 3、Ensure cleanroom compliance with ISO 14644-1 Class 5 rating. 4、Utilize wrought aluminum alloy for RoHS compliance and moderate corrosion resistance. 5、Apply specified max tightening torque for secure H-rail, valve, and wall mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 200g |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566620 |
Specifications may be subject to change without notice
