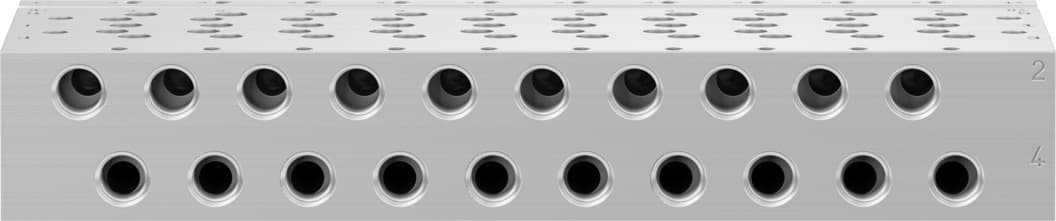

vabm-l1-14w-g14-12
Product ID:13376
Updated: 2026/4/4
Key Features
- 1Construct with wrought aluminum alloy for durability and corrosion resistance. 2、Equip with G1/4 and G1/8 pneumatic connections for versatile setup. 3、Handle high pressure from -0.9 bar to 10 bar reliably. 4、Install easily with specified max tightening torque for rails and valves. 5、Meet RCM and C UL us standards for safety and compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 972g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566651 |
Specifications may be subject to change without notice
