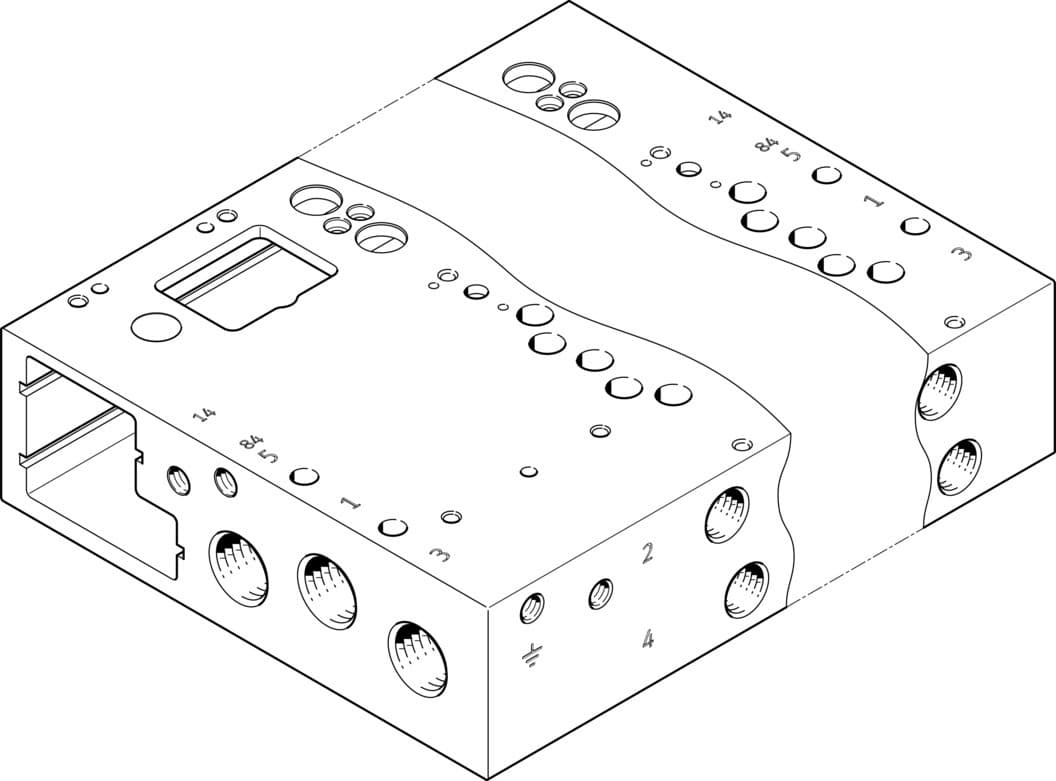

vabm-l1-14w-g14-16-m-gr
Product ID:13909
Updated: 2026/7/15
Key Features
- 1Engineer precise pneumatic control with 16 valve positions.
- 2Meet ISO 14644-1 Class 6 cleanroom standards for sensitive environments.
- 3Design for Li-ion battery production with specific metal exclusion.
- 4Utilize RoHS-compliant aluminum alloy for corrosion resistance.
- 5Integrate systems with M5 and G1/4/G1/8 ports.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 16 | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
| Storage temperature | -20°C 60°C | Product weight | 2051g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573936 |
Specifications may be subject to change without notice
