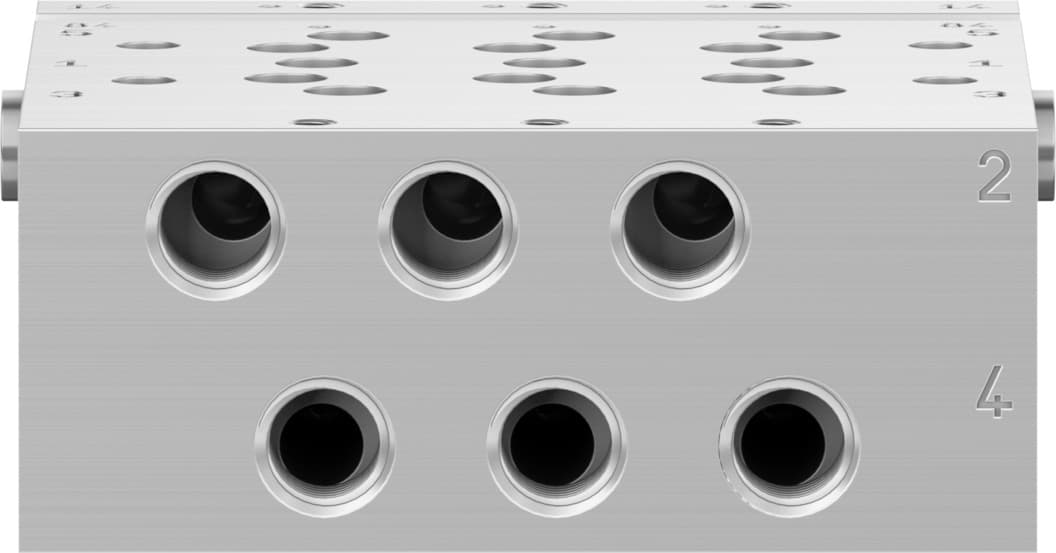

vabm-l1-14w-g14-3
Product ID:13371
Updated: 2026/4/4
Key Features
- 1Construct from durable aluminum alloy for extended service life. 2、Integrate G 1/4" x3 and G 1/8" x2 pneumatic connections. 3、Achieve CRC 2 classification for moderate corrosion resistance. 4、Utilize a 16 mm grid dimension for efficient space saving. 5、Meet RCM, c CSA us, and c UL us recognized standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 306g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566643 |
Specifications may be subject to change without notice
