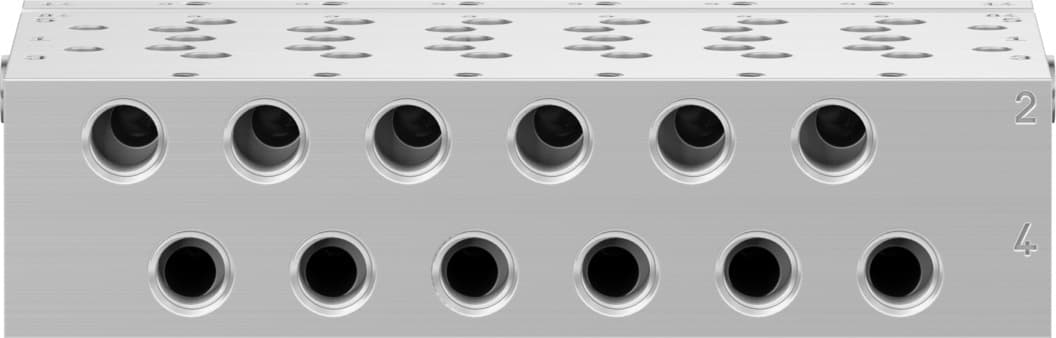

vabm-l1-14w-g14-5
Product ID:13372
Updated: 2026/7/16
Key Features
- 1Accommodate multiple pneumatic connections with up to 16 valve positions.
- 2Ensure durability with moderate corrosion resistance (CRC=2).
- 3Operate efficiently within a pressure range of -0.9 to 10 bar.
- 4Save space with a compact 16 mm grid dimension design.
- 5Meet safety standards with RCM, CSA US, and UL US certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.65Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 454g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566645 |
Specifications may be subject to change without notice
