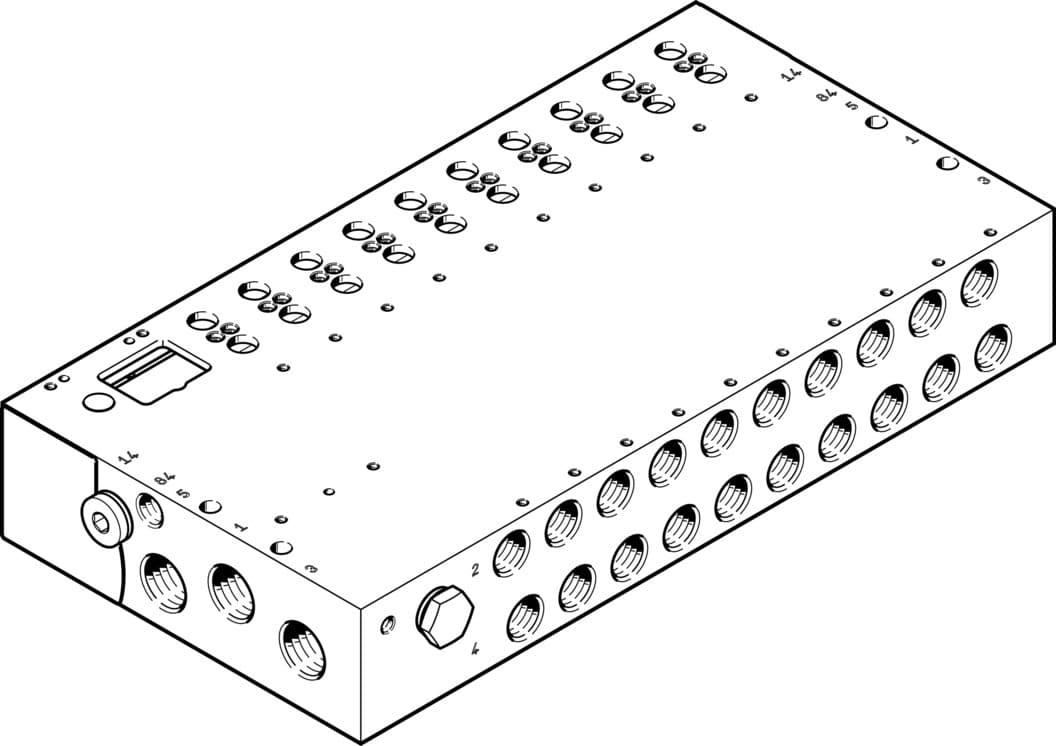

vabm-l1-18g-g38-8-g
Product ID:14966
Updated: 2026/4/3
Key Features
- 1Utilize a precise 19mm grid dimension for seamless component integration. 2、Select from optional mounting positions for versatile installation. 3、Support up to 8 valve positions for complex pneumatic system designs. 4、Meet stringent safety standards with C UL us - Recognized (OL) approval. 5、Ensure environmental compliance with RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 19mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Product weight | 2261g |
| Pilot air port 12/14 | G1/8 | Pilot exhaust air port 82/84 | G1/8 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8004903 |
Specifications may be subject to change without notice
