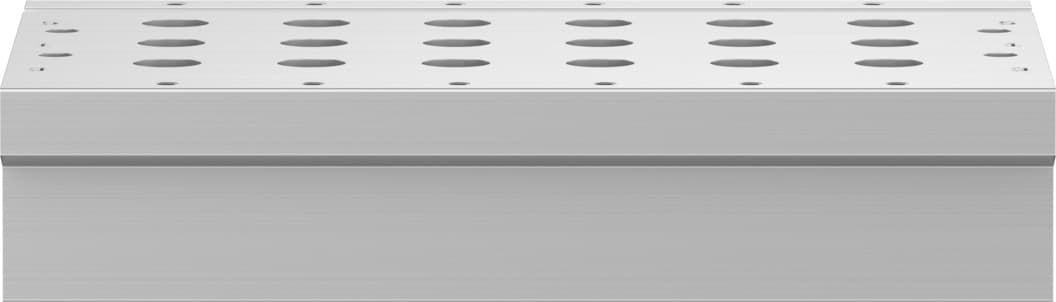

vabm-l1-18s-g38-5
Product ID:14141
Updated: 2026/4/4
Key Features
- 1Support up to 16 valve positions for high-density pneumatic control. 2、Ensure durability with Class 2 moderate corrosion resistance. 3、Meet ISO 14644-1 Class 5 standards for cleanroom use. 4、Guarantee environmental safety with RoHS-compliant materials. 5、Simplify installation with H-rail mounting compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 19mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 1.18Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 439g |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 574458 |
Specifications may be subject to change without notice
