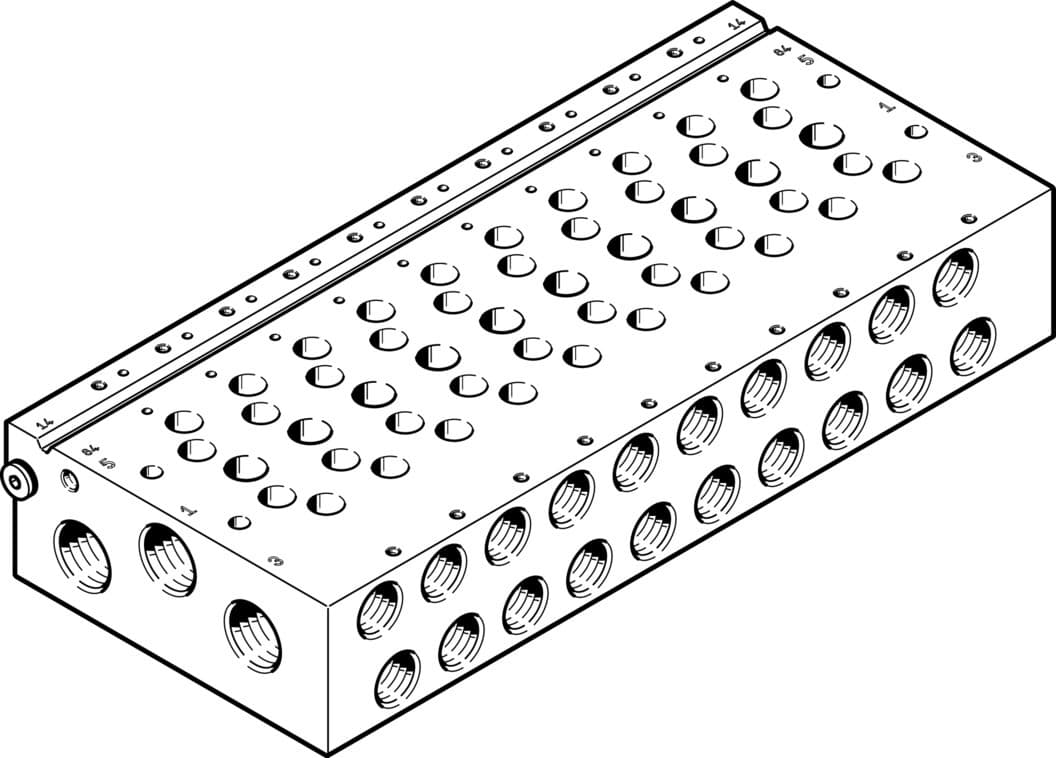

vabm-l1-18w-g38-4
Product ID:14151
Updated: 2026/4/4
Key Features
- 1Achieve moderate corrosion stress with a corrosion resistance class of 2. 2、Feature pneumatic connections including G3/8 and G1/4 ports. 3、Assemble in any position for straightforward and easy installation. 4、Construct from RoHS-compliant wrought aluminium alloy for enhanced durability. 5、Support up to 16 valve positions for precise control in pneumatic systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 19mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 1.18Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 731g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 574469 |
Specifications may be subject to change without notice
