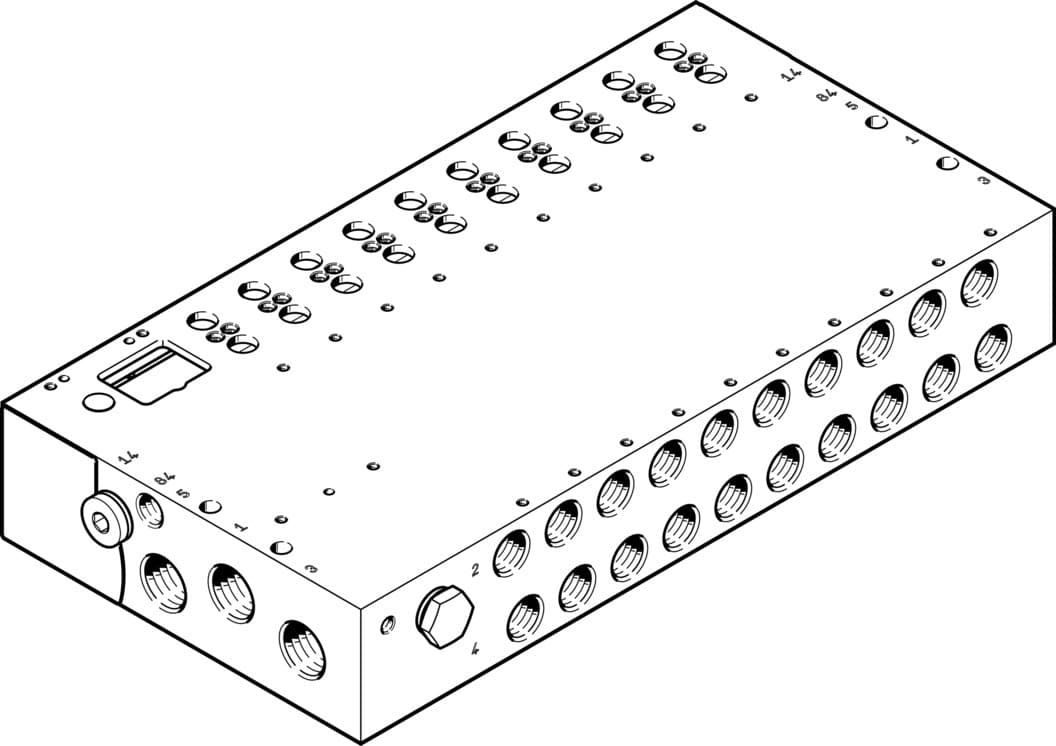

vabm-l1-18w-g38-6-g
Product ID:14976
Updated: 2026/4/3
Key Features
- 1Support up to 6 valve positions for complex pneumatic circuits. 2、Provide moderate corrosion resistance (class 2) for durability. 3、Assemble in any position for flexible system design. 4、Feature G1/8 pilot and G3/8/G1/4 pneumatic connections. 5、Meet RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 19mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Product weight | 1723g |
| Pilot air port 12/14 | G1/8 | Pilot exhaust air port 82/84 | G1/8 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8004915 |
Specifications may be subject to change without notice
