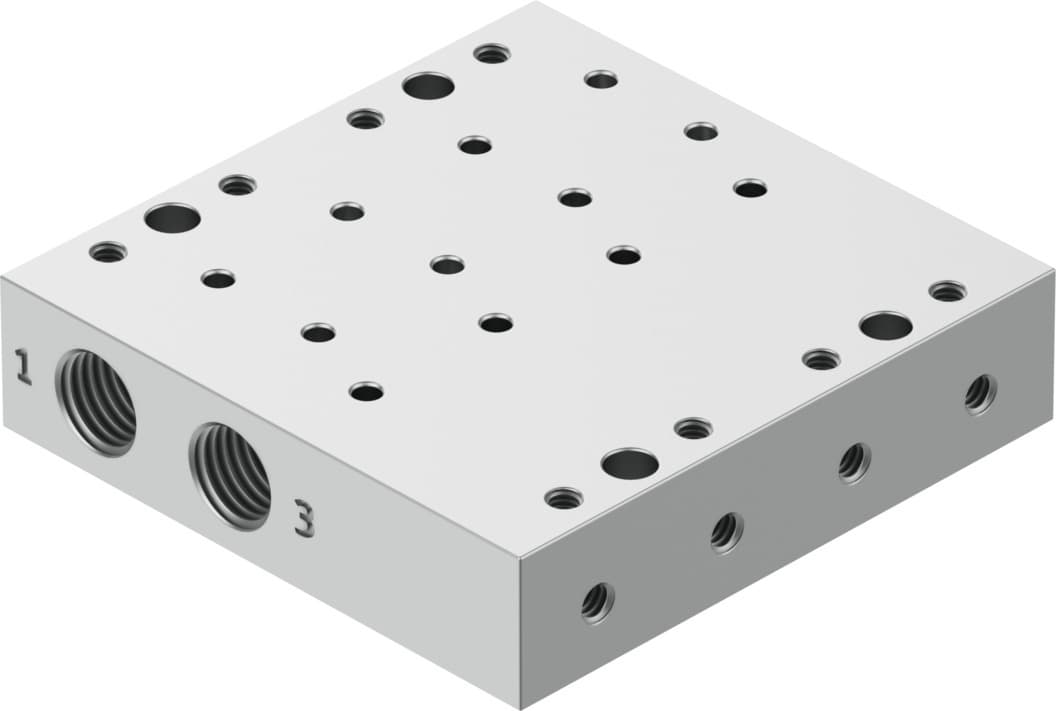

vabm-p6-15mb-g18-m5-4
Product ID:16495
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact 15mm grid dimension. 2、Ensure durability using corrosion-resistant wrought aluminum alloy. 3、Connect flexibly with G1/8 and M5 pneumatic ports. 4、Secure valve mounting with a 0.6Nm max tightening torque. 5、Meet industry standards with LABS conformity and VDMA24364-B2-L.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 15mm | Structural design | Connection direction downwards |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 140g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083544 |
Specifications may be subject to change without notice
