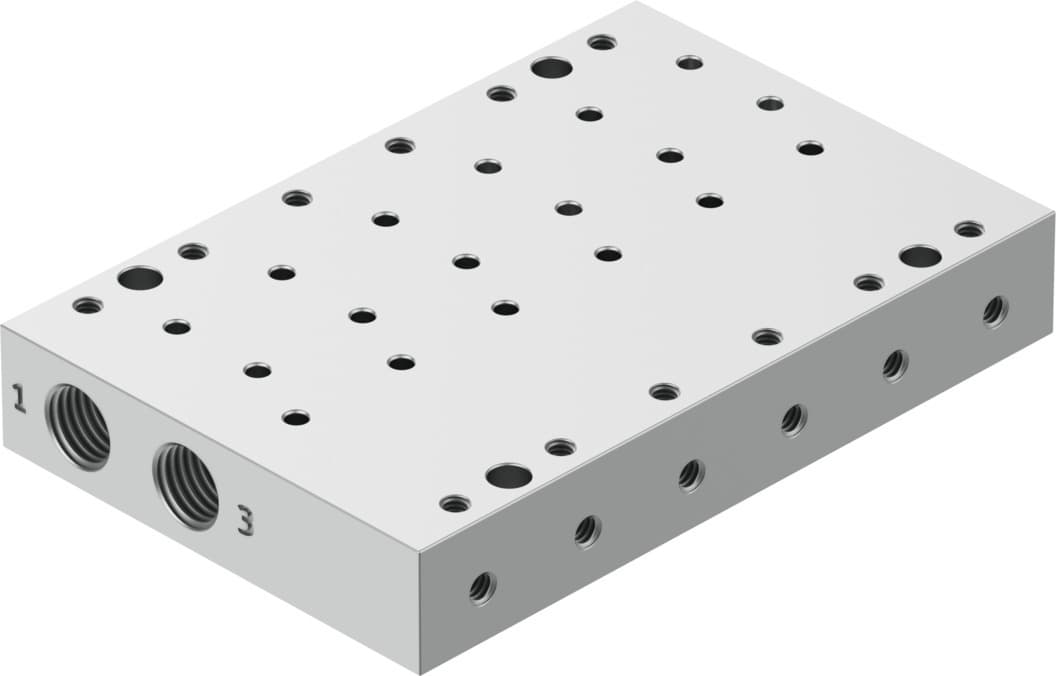

vabm-p6-15mb-g18-m5-6
Product ID:16497
Updated: 2026/4/3
Key Features
- 1Mount valves precisely with a 15mm grid dimension. 2、Design efficient systems using the downward connection direction. 3、Support versatile applications with up to 6 valve positions. 4、Ensure durability with moderate corrosion resistance class CRC 2. 5、Rely on reliability from RoHS-compliant wrought aluminium alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 15mm | Structural design | Connection direction downwards |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 210g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083546 |
Specifications may be subject to change without notice
