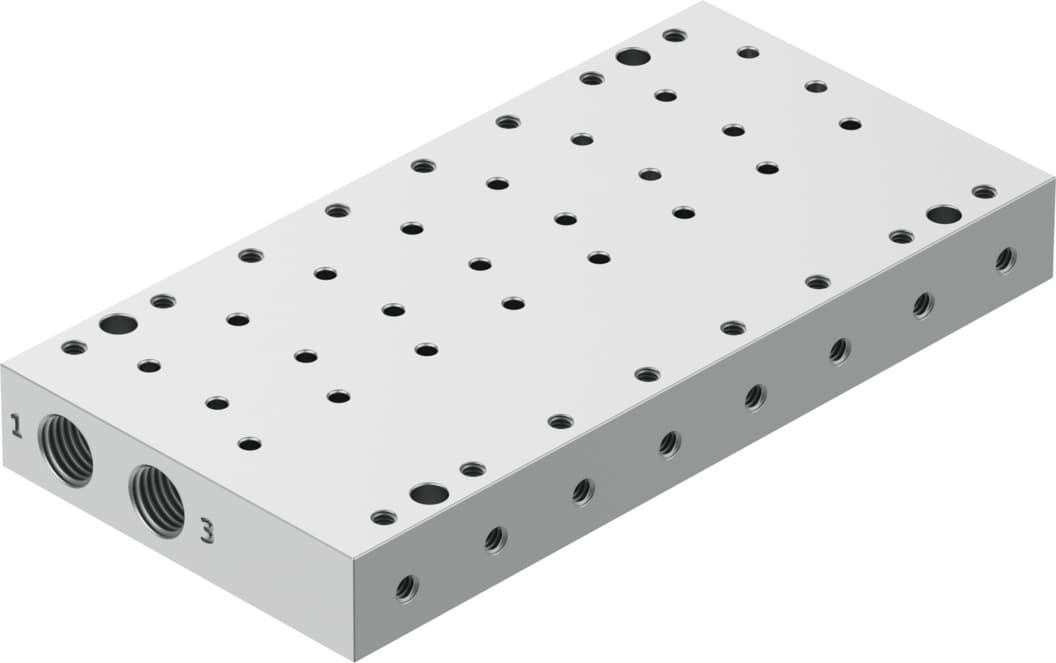

vabm-p6-15mb-g18-m5-8
Product ID:16498
Updated: 2026/4/3
Key Features
- 1Integrate 8 valves on a compact 15mm grid rail. 2、Mount valves securely with a specified 0.6 Nm tightening torque. 3、Ensure durability with moderate CRC2 corrosion resistance. 4、Use RoHS-compliant wrought aluminum alloy for sustainability. 5、Simplify pneumatic system design and reduce assembly time.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 15mm | Structural design | Connection direction downwards |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 280g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083548 |
Specifications may be subject to change without notice
