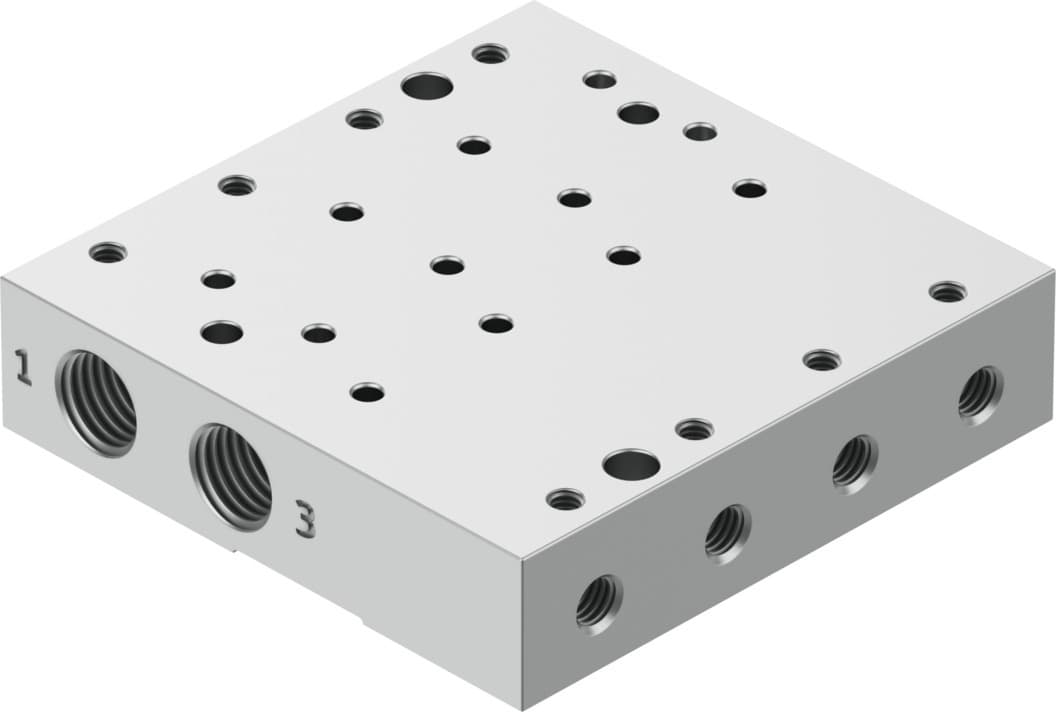

vabm-p6-15m-g18-m5-4
Product ID:16494
Updated: 2026/7/4
Key Features
- 1Utilize a 15mm grid dimension for efficient use in tight spaces.
- 2Construct from RoHS-compliant wrought aluminum alloy for durability.
- 3Feature pneumatic connections including G1/8 and M5 ports.
- 4Ensure long-lasting performance with moderate corrosion stress resistance.
- 5Simplify valve mounting with a max. tightening torque of 0.6 Nm.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 15mm | Structural design | Connection direction at side |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 140g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083543 |
Specifications may be subject to change without notice
