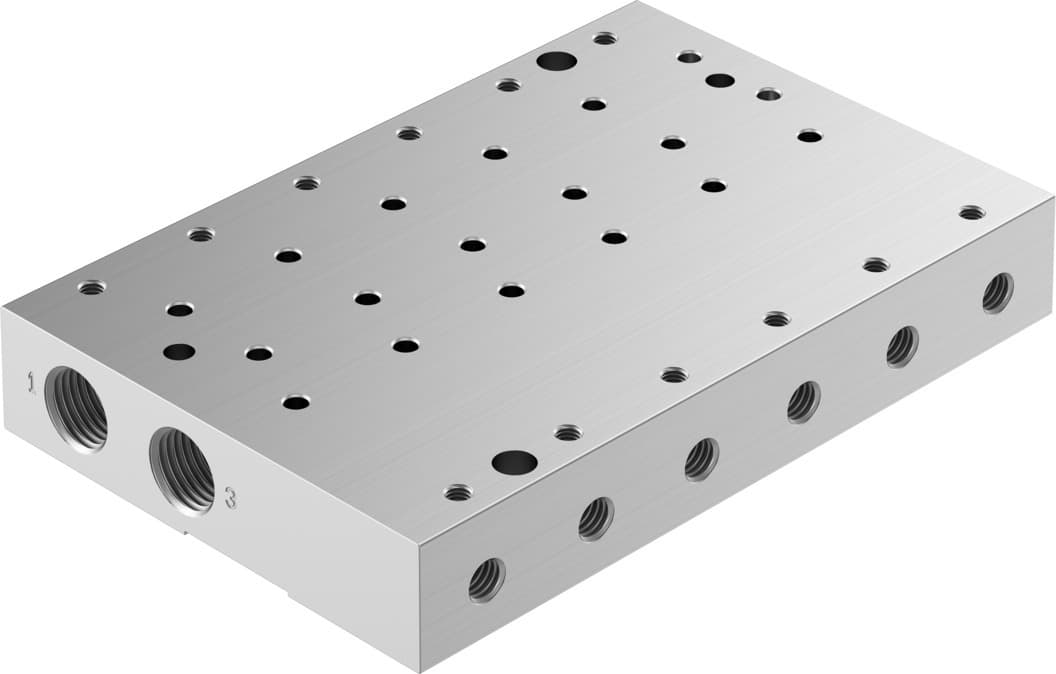

vabm-p6-15m-g18-m5-6
Product ID:16496
Updated: 2026/4/3
Key Features
- 1Utilize a 15mm grid for efficient space optimization. 2、Construct from durable wrought aluminum alloy. 3、Support up to 6 valve positions for versatile system design. 4、Provide moderate corrosion stress resistance (CRC 2). 5、Ensure compatibility with G1/8 and M5 pneumatic connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 15mm | Structural design | Connection direction at side |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 210g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8083545 |
Specifications may be subject to change without notice
