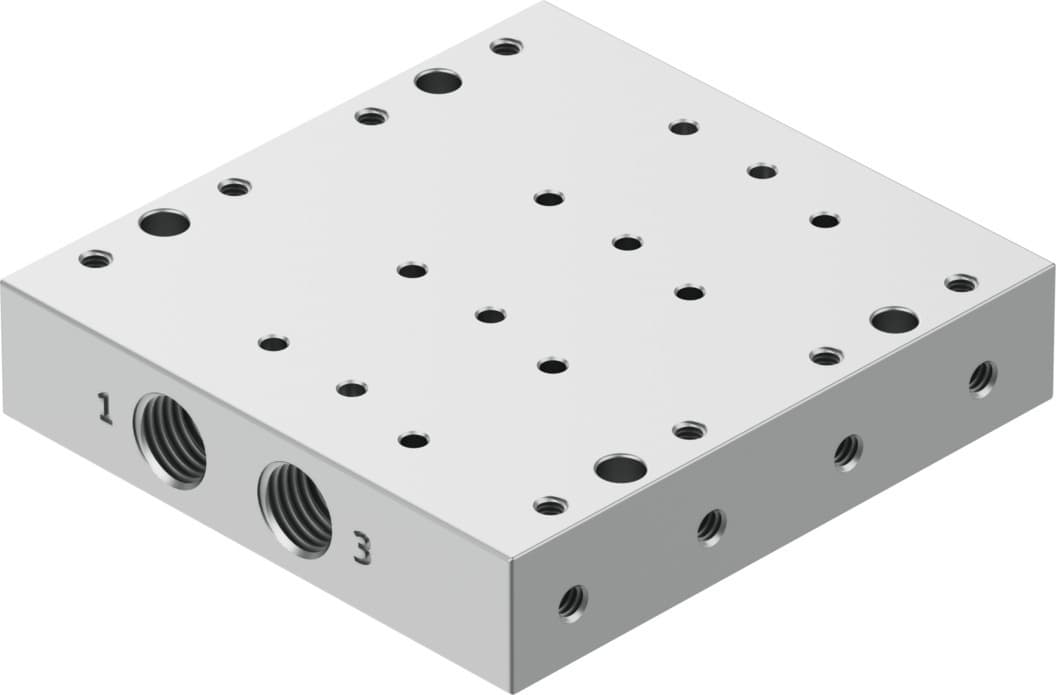

vabm-p7-18mb-g18-m5-4
Product ID:16338
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact 18 mm grid design. 2、Ensure durability using corrosion-resistant wrought aluminum alloy. 3、Connect valves flexibly via G1/8 and M5 pneumatic ports. 4、Support high-density control for up to 4 valve positions. 5、Meet safety standards like LABS and VDMA24364-B2-L.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 18mm | Structural design | Connection direction downwards |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 180g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076387 |
Specifications may be subject to change without notice
