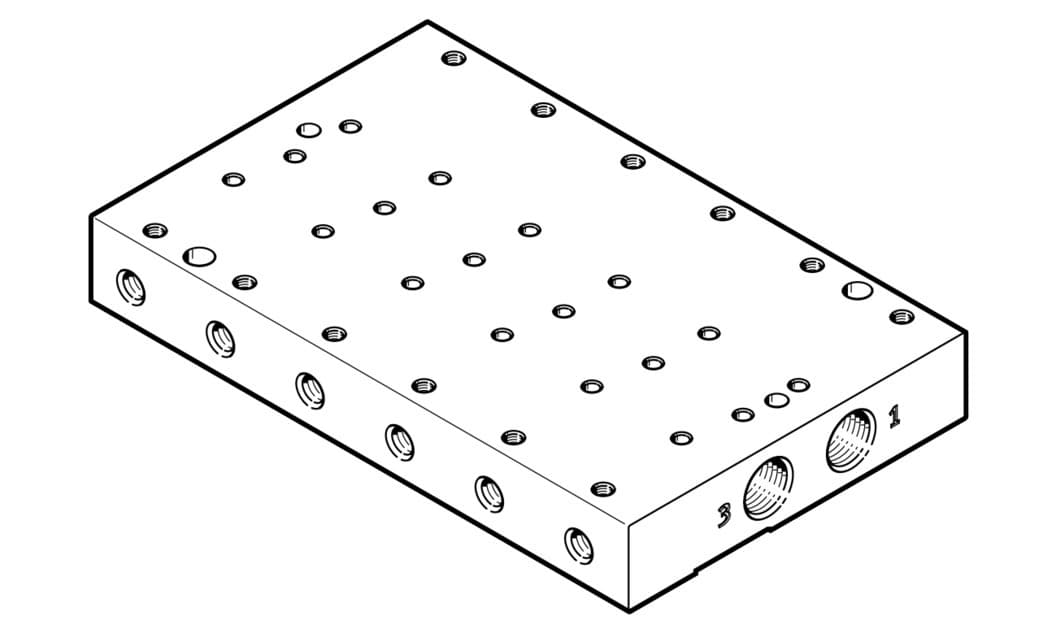

vabm-p7-18mb-g18-m5-6
Product ID:16340
Updated: 2026/4/3
Key Features
- 1Provide reliable G1/8 and M5 pneumatic connections for precise fluid control. 2、Withstand moderate corrosion stress with a corrosion resistance class of 2. 3、Save space with a compact 18 mm width and 270-gram weight. 4、Ensure secure valve mounting with a 0.6 Nm maximum tightening torque. 5、Meet environmental standards using RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 18mm | Structural design | Connection direction downwards |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 270g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076389 |
Specifications may be subject to change without notice
