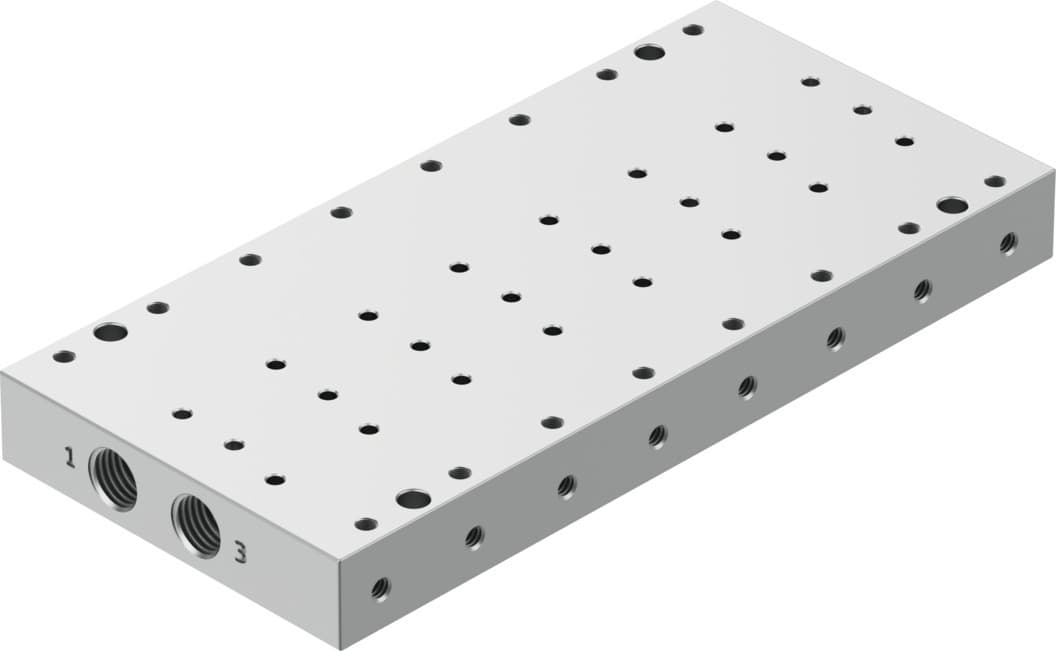

vabm-p7-18mb-g18-m5-8
Product ID:16342
Updated: 2026/4/3
Key Features
- 1Construct durable manifolds using wrought aluminum alloy for moderate corrosion resistance. 2、Achieve precise fluid control with integrated G1/8 and M5 pneumatic connections. 3、Optimize valve layout with the downward connection direction for efficient operation. 4、Ensure secure valve mounting with a maximum tightening torque of 0.6 Nm. 5、Save space in compact panels with the 18 mm grid dimension.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 18mm | Structural design | Connection direction downwards |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 360g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076391 |
Specifications may be subject to change without notice
