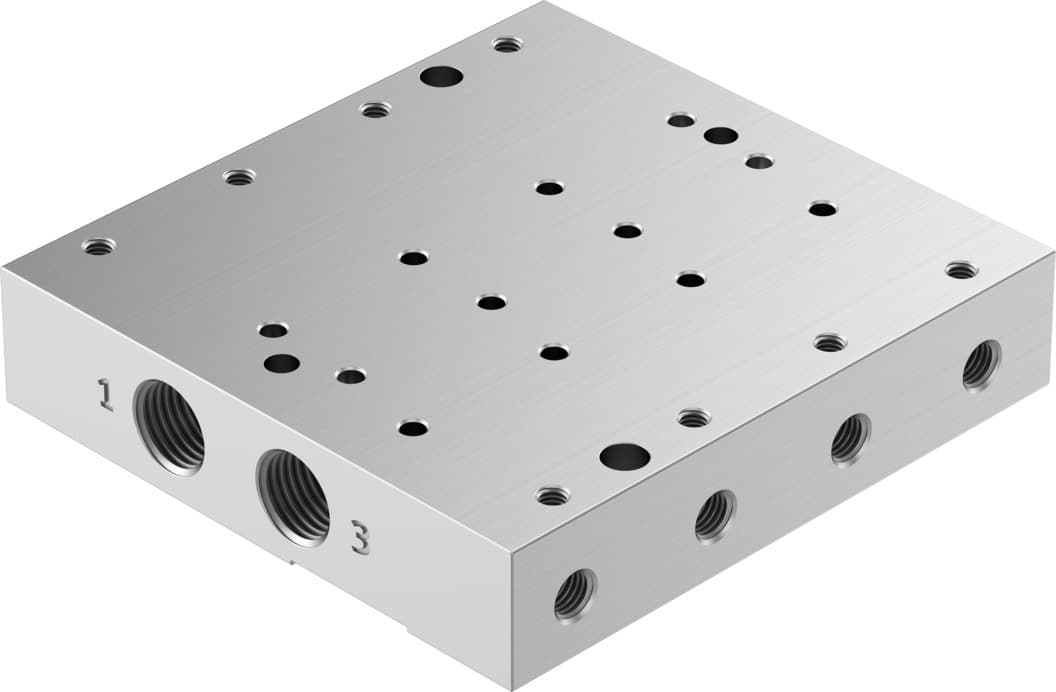

vabm-p7-18m-g18-m5-4
Product ID:16337
Updated: 2026/4/3
Key Features
- 1Integrate precisely with 18mm grid dimension for pneumatic systems. 2、Construct from durable wrought aluminum alloy for corrosion resistance. 3、Connect flexibly using G1/8 and M5 pneumatic ports. 4、Mount valves securely with a max 0.6 Nm tightening torque. 5、Meet high standards with RoHS and LABS (PWIS) conformity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 18mm | Structural design | Connection direction at side |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 180g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076386 |
Specifications may be subject to change without notice
