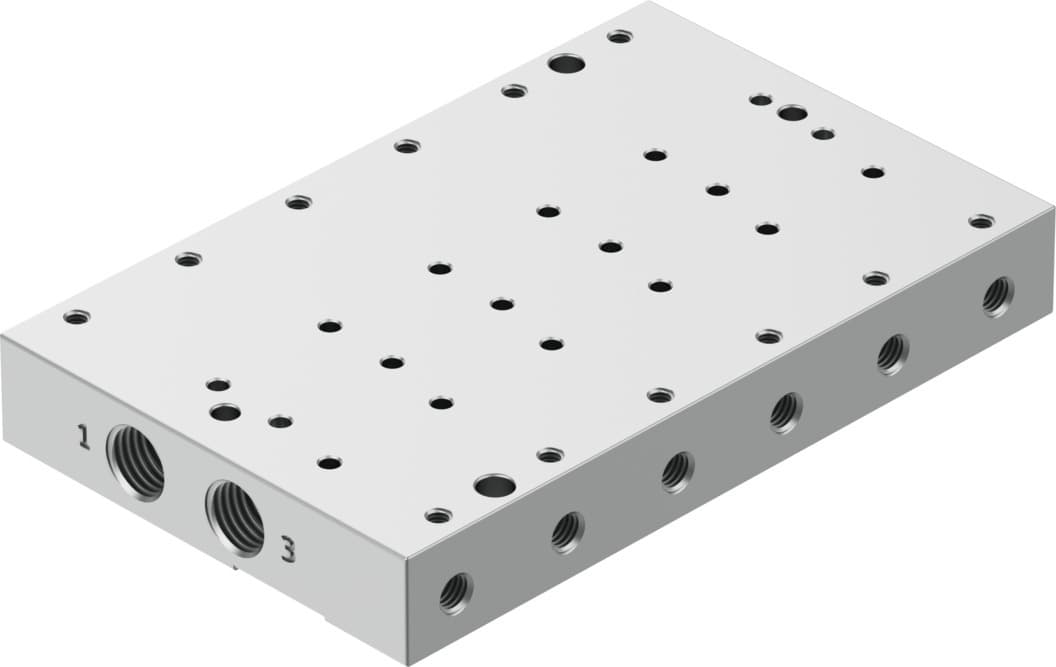

vabm-p7-18m-g18-m5-6
Product ID:16339
Updated: 2026/7/4
Key Features
- 1Maximize space with a compact 18 mm width design.
- 2Ensure longevity with moderate CRC 2 corrosion resistance.
- 3Control multiple functions using 6 valve positions.
- 4Simplify installation with G1/8 and M5 pneumatic connections.
- 5Guarantee durability with RoHS-compliant wrought aluminum alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 18mm | Structural design | Connection direction at side |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 270g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076388 |
Specifications may be subject to change without notice
