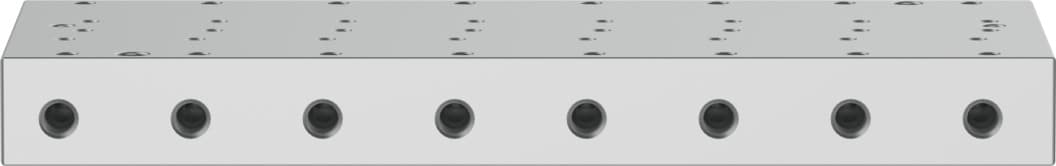

vabm-p7-18m-g18-m5-8
Product ID:16341
Updated: 2026/4/3
Key Features
- 1Utilize an 18mm grid for precise valve positioning. 2、Connect up to 8 valves for multiple pneumatic functions. 3、Resist moderate corrosion with KBK 2 class protection. 4、Apply up to 0.6Nm torque for secure valve mounting. 5、Benefit from a compact 360g lightweight aluminum design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 18mm | Structural design | Connection direction at side |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 360g | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8076390 |
Specifications may be subject to change without notice
