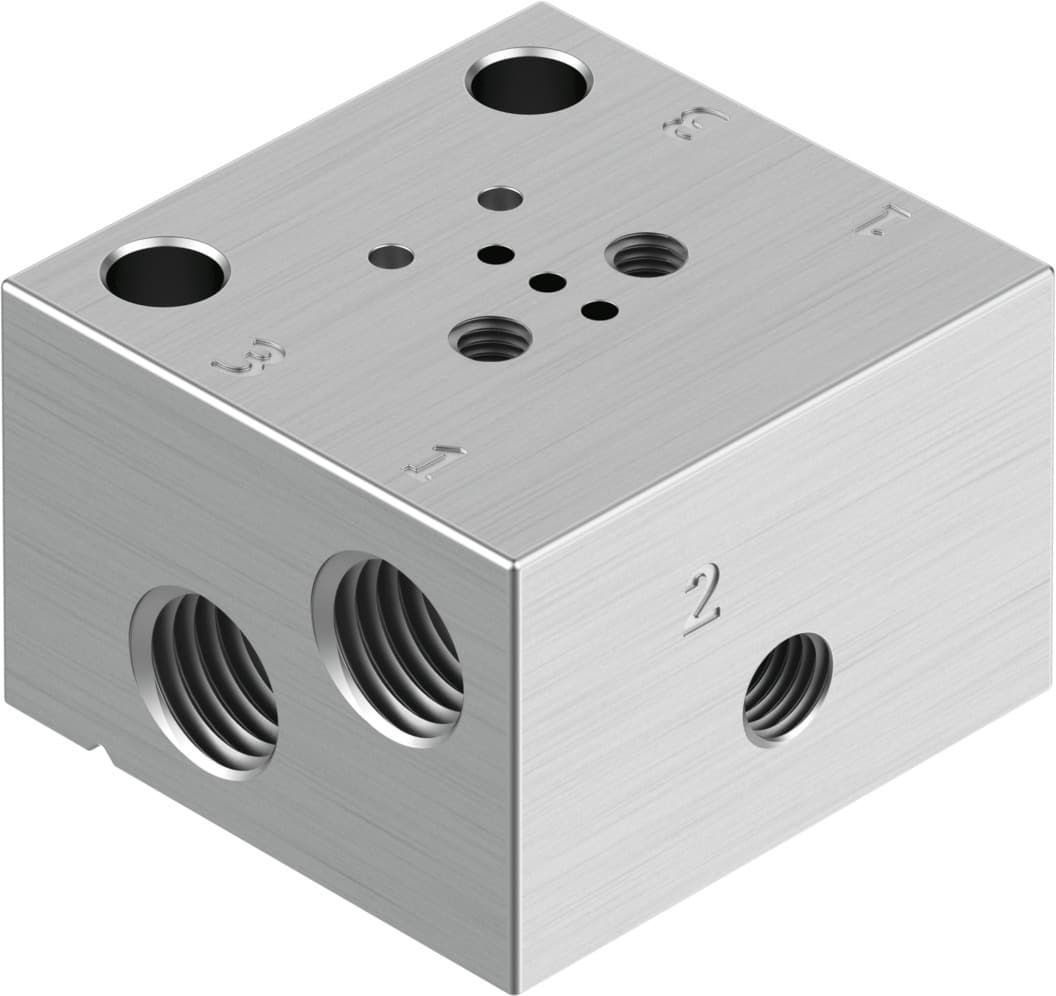

vabs-c12-6-b-m3
Product ID:16854
Updated: 2026/4/3
Key Features
- 1Integrate easily with a compact 20 mm width design. 2、Apply versatile operations with a -0.1 to 0.7 MPa pressure range. 3、Route piping efficiently using the downward connection direction. 4、Ensure compressed air quality compliant with ISO 8573-1:2010. 5、Achieve durability with RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 20mm | Mounting position | Any |
| Structural design | Connection direction downwards | Max. no. of valve positions | 1 |
| Operating pressure | -1bar 7bar | Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Information on operating and pilot media | Maximum particle size 5 μm | LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 5°C 50°C | Product weight | 13.5g |
| Type of mounting | With through-hole | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M3 | Pneumatic connection 3 | M5 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8122793 |
Specifications may be subject to change without notice
