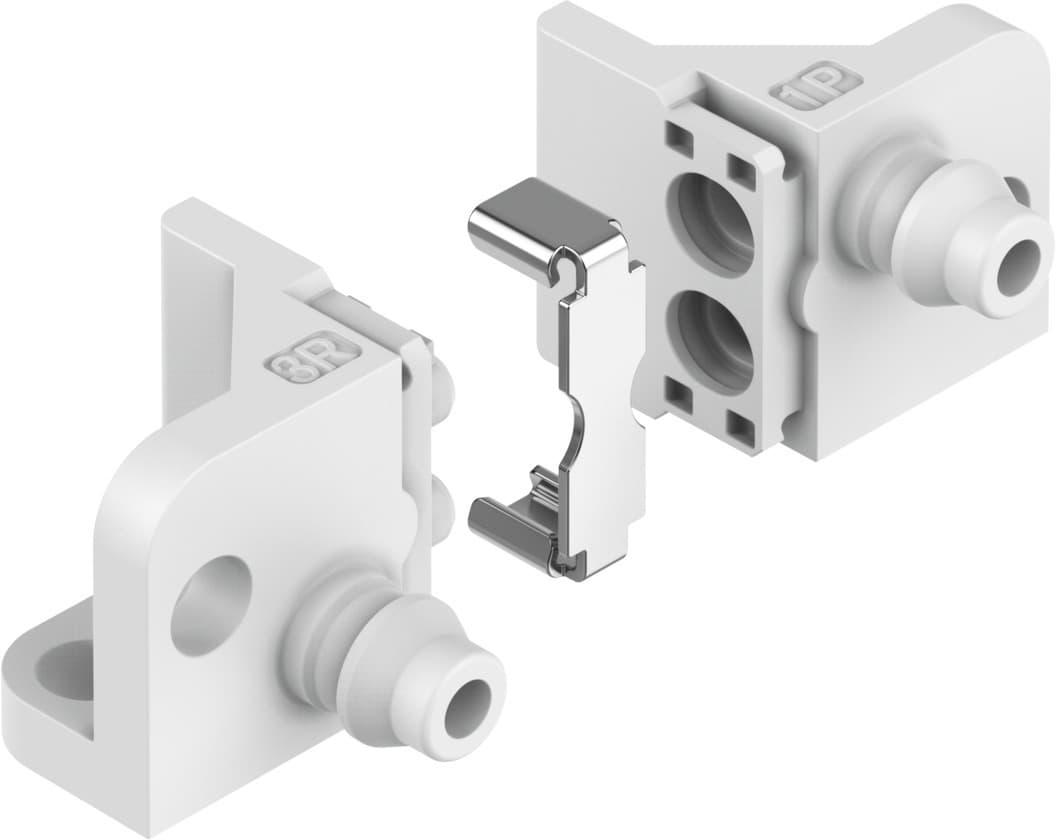

vabs-c12-6-s
Product ID:16851
Updated: 2026/4/3
Key Features
- 1Integrate easily with a compact 13 mm width design. 2、Assemble in any position for versatile installation. 3、Connect flexibly with side connection direction. 4、Operate reliably at pressures up to 7 bar. 5、Ensure compliance with RoHS-approved PBT material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 13mm | Mounting position | Any |
| Structural design | Connection direction at side | Max. no. of valve positions | Versions according to customer specifications possible |
| Operating pressure | -1bar 7bar | Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Information on operating and pilot media | Maximum particle size 5 μm | LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 5°C 50°C | Product weight | 3g |
| Type of mounting | With through-hole | Pneumatic connection 2 | For tubing I.D. 4 mm |
| Note on materials | RoHS-compliant | Manifold rail material | PBT |
| Manufacturer ID | 8122790 |
Specifications may be subject to change without notice
