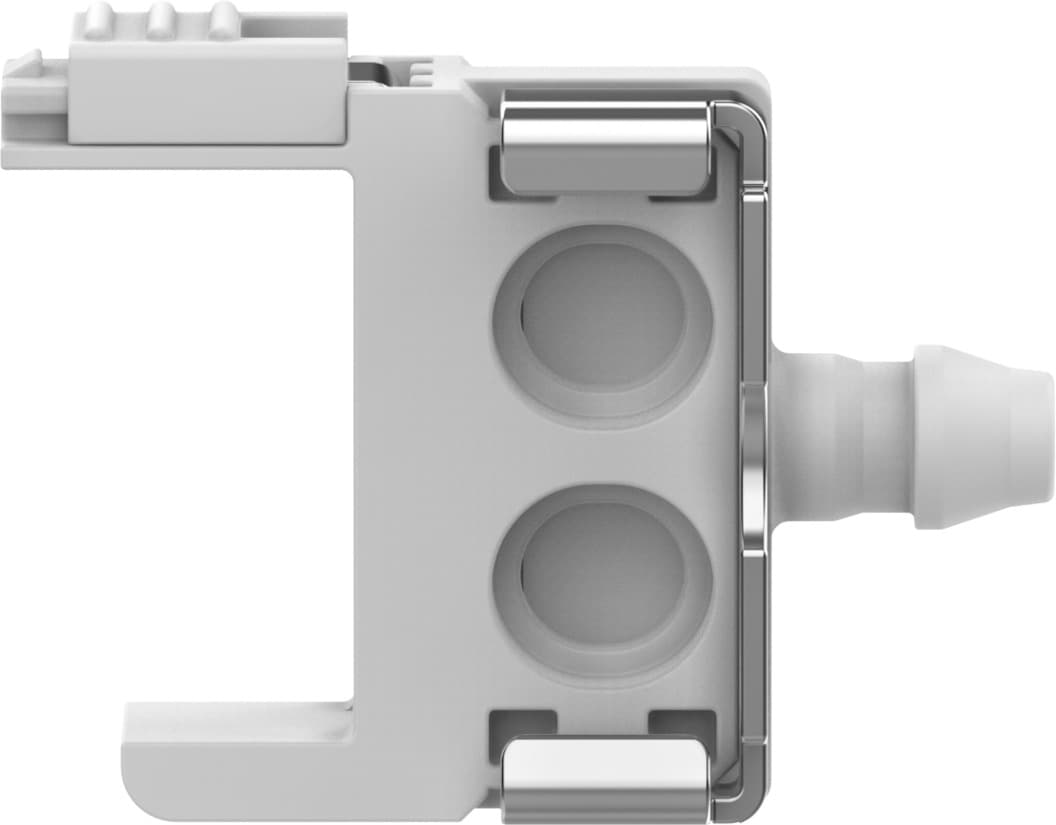

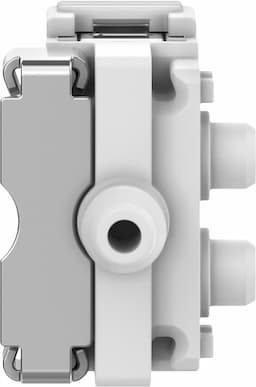

vabs-c12-6-s-b3
Product ID:16853
Updated: 2026/7/4
Key Features
- 1Optimize space with a compact 6 mm width design.
- 2Install flexibly using versatile mounting positions.
- 3Simplify integration with side connection direction.
- 4Operate reliably under -0.1 to 0.7 MPa pressure.
- 5Ensure air quality compliance with ISO 8573-1:2010.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 6mm | Mounting position | Any |
| Structural design | Connection direction at side | Max. no. of valve positions | 1 |
| Operating pressure | -1bar 7bar | Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Information on operating and pilot media | Maximum particle size 5 μm | LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 5°C 50°C | Product weight | 1.1g |
| Type of mounting | With through-hole | Pneumatic connection 2 | For tubing I.D. 2 mm |
| Note on materials | RoHS-compliant | Manifold rail material | PBT |
| Manufacturer ID | 8122792 |
Specifications may be subject to change without notice
