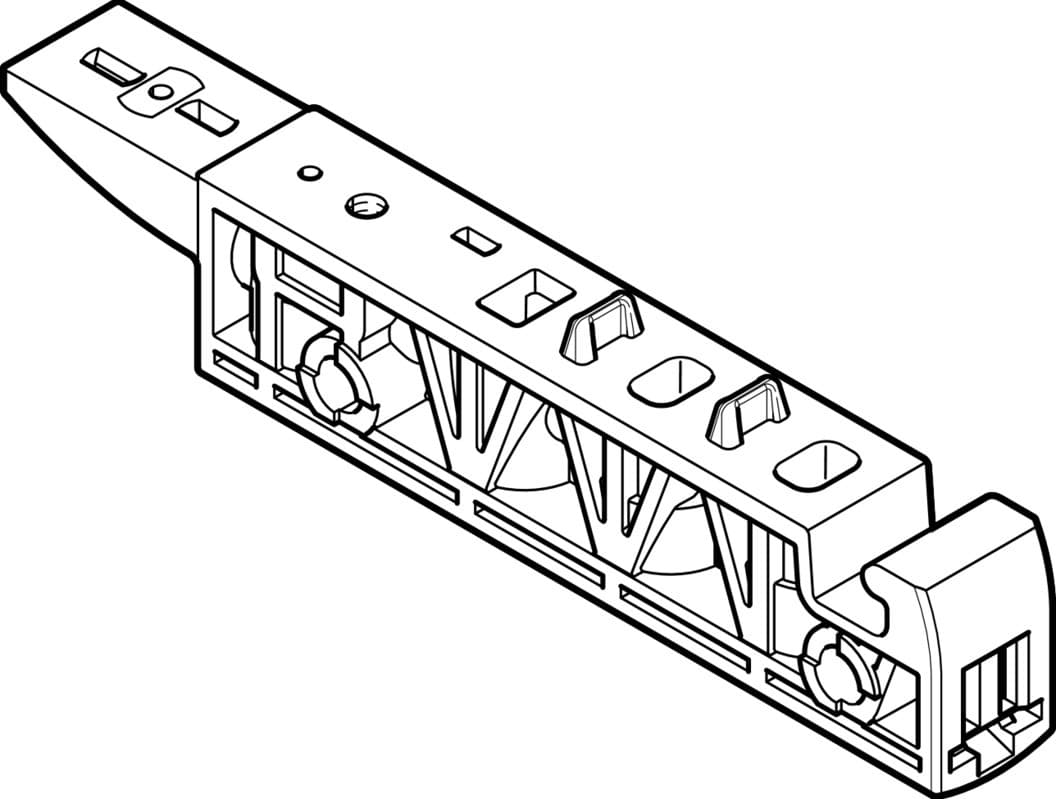

vabs-c8-12xb-qx
Product ID:862
Updated: 2026/4/3
Key Features
- 1Feature a 12 mm construction width for compact and versatile pneumatic setups. 2、Support a maximum of one valve position for simple and efficient system control. 3、Provide CRC 0 corrosion resistance for reliable performance in harsh environments. 4、Enable easy installation with specified valve and wall mounting torque. 5、Prepare for cartridge connections at ports 1, 3, and 5 for flexible system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12mm | Max. no. of valve positions | 1 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for valve mounting | 0.48Nm 0.72Nm | Max. tightening torque for wall mounting | 1.3Nm |
| Product weight | 15g | Pilot air port 12/14 | Prepared for cartridge |
| Pneumatic connection 1 | Prepared for cartridge | Pneumatic connection 3 | Prepared for cartridge |
| Pneumatic connection 5 | Prepared for cartridge | Note on materials | RoHS-compliant |
| Manifold rail material | PA-reinforced | Manufacturer ID | 1236027 |
Specifications may be subject to change without notice
