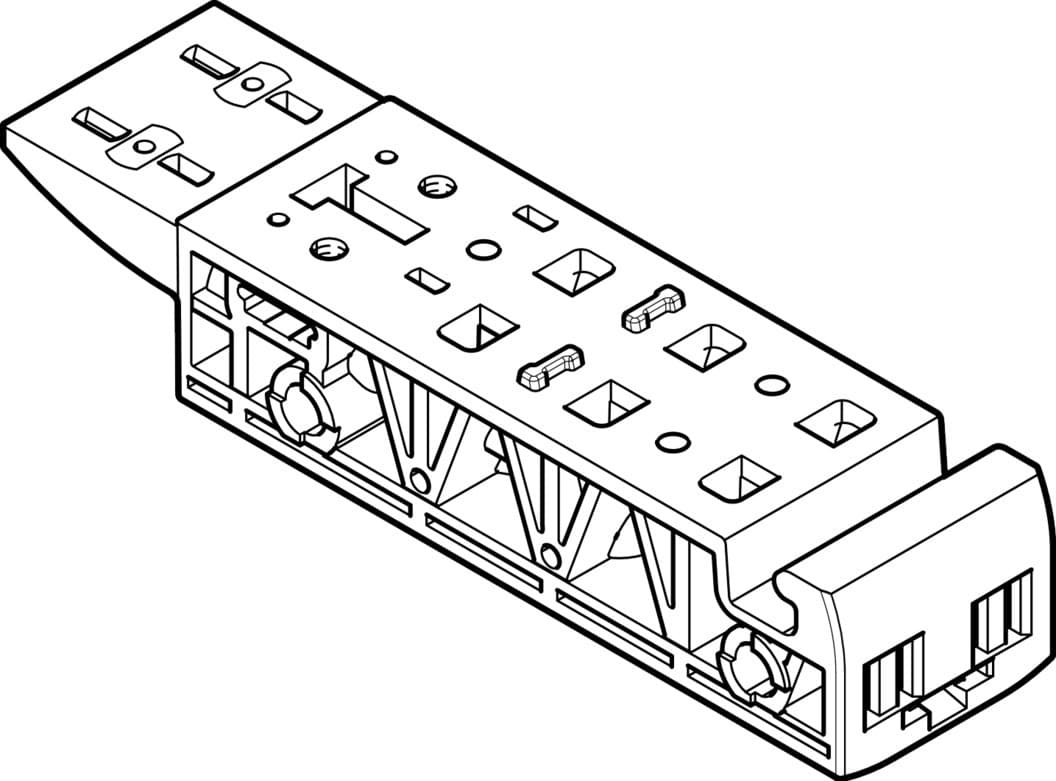

vabs-c8-12xb-qx-db
Product ID:863
Updated: 2026/4/3
Key Features
- 1Ensure precise operation in VTSA valve terminal applications. 2、Feature a PA-reinforced manifold rail for superior durability. 3、Provide a compact 24mm width with 1 valve position. 4、Meet RoHS standards for environmental safety. 5、Simplify integration with prepared cartridge connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 24mm | Max. no. of valve positions | 1 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for valve mounting | 0.48Nm 0.72Nm | Max. tightening torque for wall mounting | 1.3Nm |
| Product weight | 30g | Pilot air port 12/14 | Prepared for cartridge |
| Pneumatic connection 1 | Prepared for cartridge | Pneumatic connection 3 | Prepared for cartridge |
| Pneumatic connection 5 | Prepared for cartridge | Note on materials | RoHS-compliant |
| Manifold rail material | PA-reinforced | Manufacturer ID | 1236028 |
Specifications may be subject to change without notice
