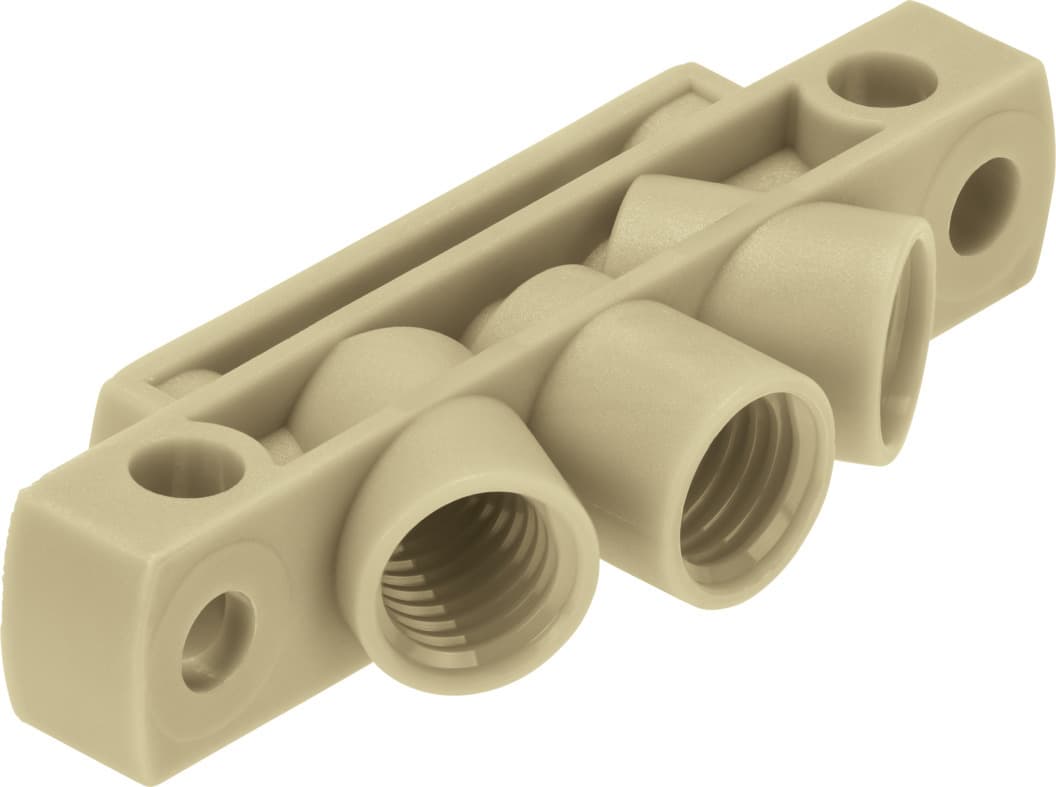

vabs-k1-7b-12-m5-p
Product ID:16025
Updated: 2026/7/4
Key Features
- 1Ensure RoHS compliance and durability with PEEK material.
- 2Enhance strength using a high-alloy stainless steel sleeve.
- 3Enable versatile installation with reversible flow direction.
- 4Handle liquid and gaseous media with zero corrosion stress.
- 5Save space via a compact 1.2mm width, 7mm valve design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 1.2mm | Valve size | 7mm |
| Fluid connector | Internal thread M5 | Mounting position | Any |
| Structural design | Connection direction downwards | Flow direction | Reversible |
| Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.15Nm | Max. tightening torque of pneumatic fitting | 0.6Nm |
| Product weight | 3.3g | Sub-base mounting type | With through-hole |
| Pneumatic valve mounting type | With internal thread | Note on materials | RoHS-compliant |
| Material of sub-base | PEEK | Threaded sleeve material | High-alloy stainless steel |
| Manufacturer ID | 8047064 |
Specifications may be subject to change without notice
