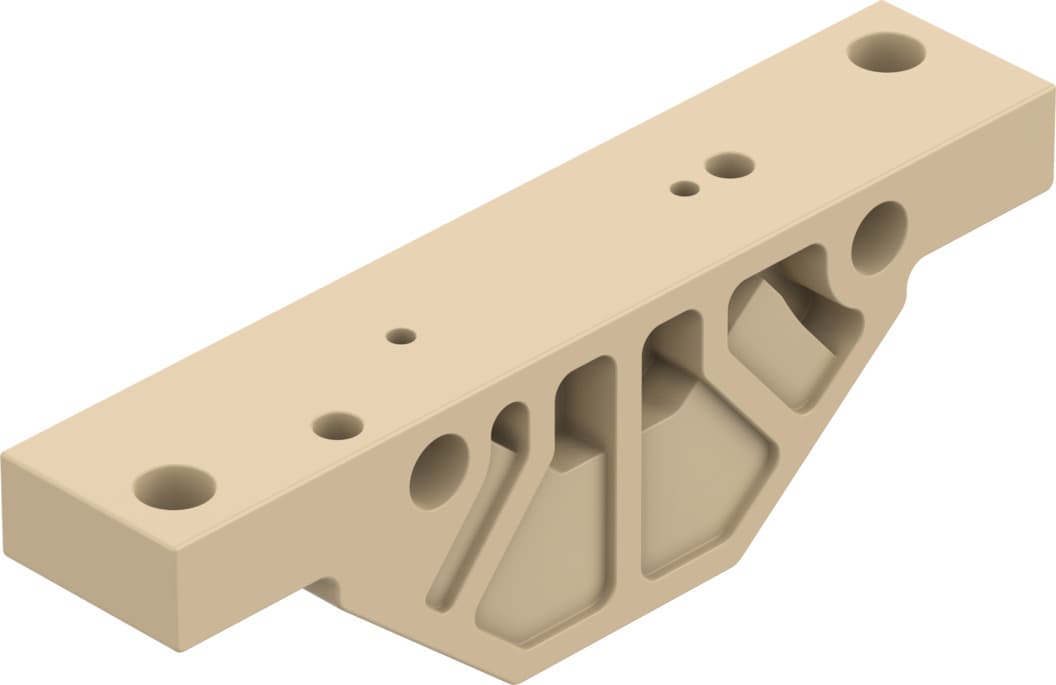

vabs-k2-10b-16-m6-p
Product ID:16855
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact 10mm design and 1.6mm nominal width. 2、Install flexibly in any mounting position for versatile integration. 3、Ensure consistent operation using the non-reversible flow direction. 4、Eliminate corrosion stress with a corrosion resistance class of 0 (CRC). 5、Achieve durable performance with RoHS-compliant PEEK material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Nominal width | 1.6mm |
| Fluid connector | Internal thread M6 | Mounting position | Any |
| Structural design | Connection direction downwards | Max. no. of valve positions | 1 |
| Flow direction | Non-reversible | Operating medium | Liquid media Gaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 70°C |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.2Nm | Product weight | 7g |
| Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
| Note on materials | RoHS-compliant | Material of sub-base | PEEK |
| Manufacturer ID | 8122825 |
Specifications may be subject to change without notice
