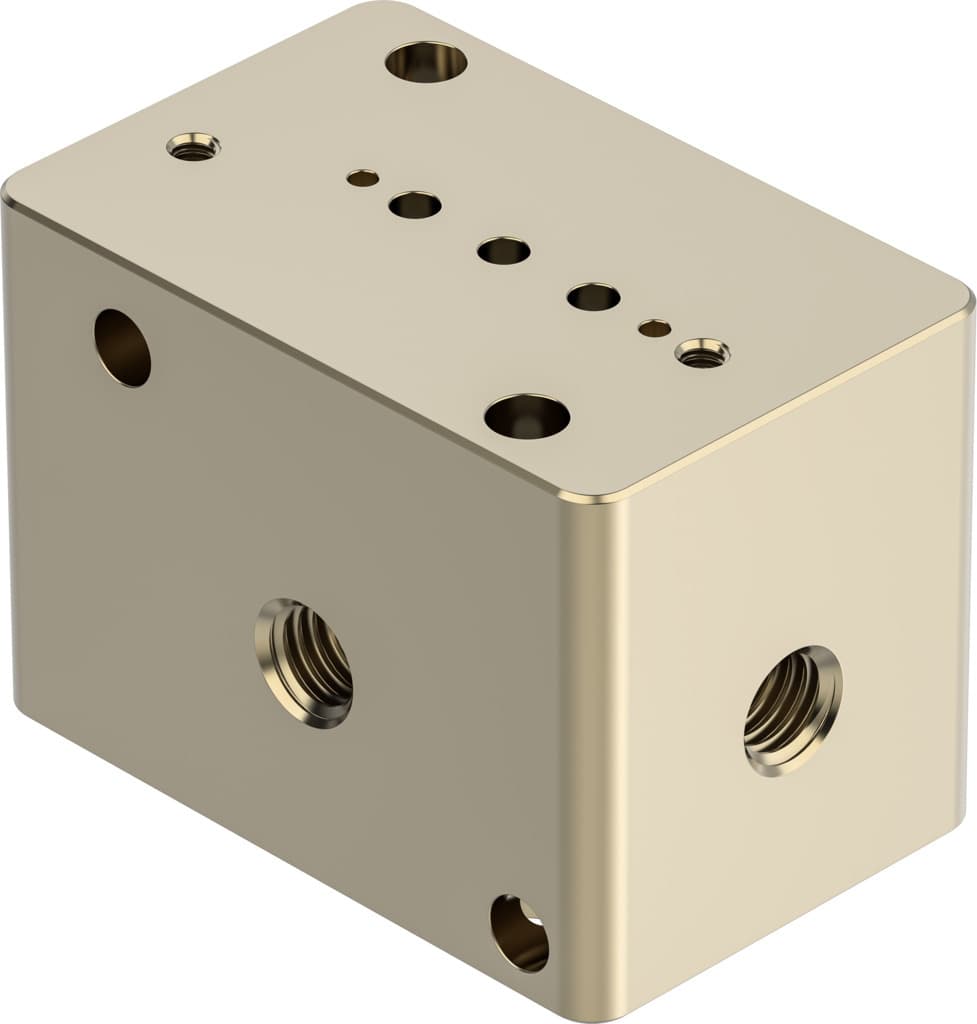

vabs-k2-10s-16-m5-p
Product ID:187
Updated: 2026/4/3
Key Features
- 1Save space with a compact 10mm design. 2、Ensure reliable connections using M6 internal threads. 3、Install flexibly in any mounting position. 4、Secure valves precisely with 0.2 Nm torque. 5、Guarantee durability with RoHS materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Nominal width | 1.6mm |
| Valve size | 10mm | Fluid connector | Internal thread M5 |
| Mounting position | Any | Structural design | Connection direction at side |
| Max. no. of valve positions | 1 | Flow direction | Non-reversible |
| Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.2Nm | Max. tightening torque of pneumatic fitting | 1Nm |
| Max. tightening torque | 0.6Nm | Product weight | 20g |
| Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
| Note on materials | RoHS-compliant | Material of sub-base | PEEK |
| Manufacturer ID | 8186875 |
Specifications may be subject to change without notice
