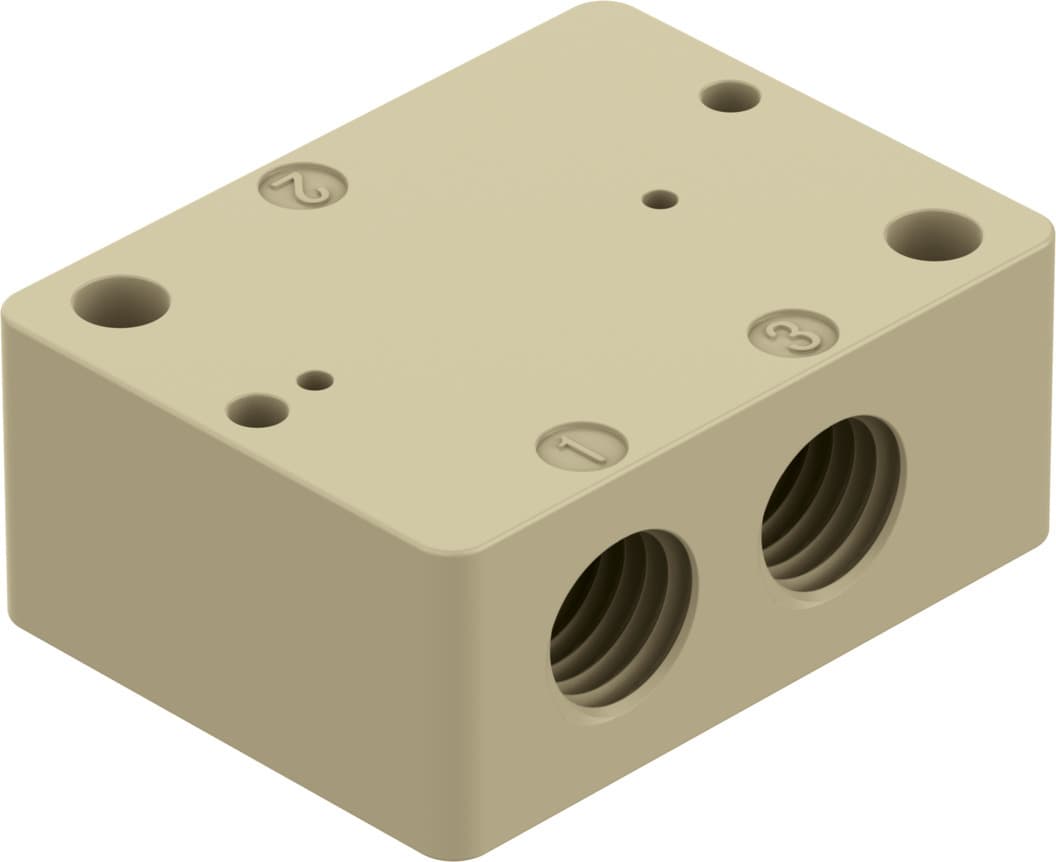

vabs-k2-10s-16-m6-p
Product ID:16857
Updated: 2026/4/3
Key Features
- 1Fit into space-constrained applications with a 1.6 mm nominal size. 2、Mount in any position for flexible installation. 3、Ensure durability in harsh environments with CRC 0 corrosion resistance. 4、Guarantee consistent operation via non-reversible flow direction. 5、Meet high quality standards using RoHS-compliant PEEK material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Nominal width | 1.6mm |
| Fluid connector | Internal thread M6 | Mounting position | Any |
| Structural design | Connection direction at side | Max. no. of valve positions | 1 |
| Flow direction | Non-reversible | Operating medium | Liquid media Gaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 70°C |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.2Nm | Max. tightening torque | 0.6Nm |
| Product weight | 7g | Sub-base mounting type | With through-hole |
| Pneumatic valve mounting type | With internal thread | Note on materials | RoHS-compliant |
| Material of sub-base | PEEK | Manufacturer ID | 8122827 |
Specifications may be subject to change without notice
