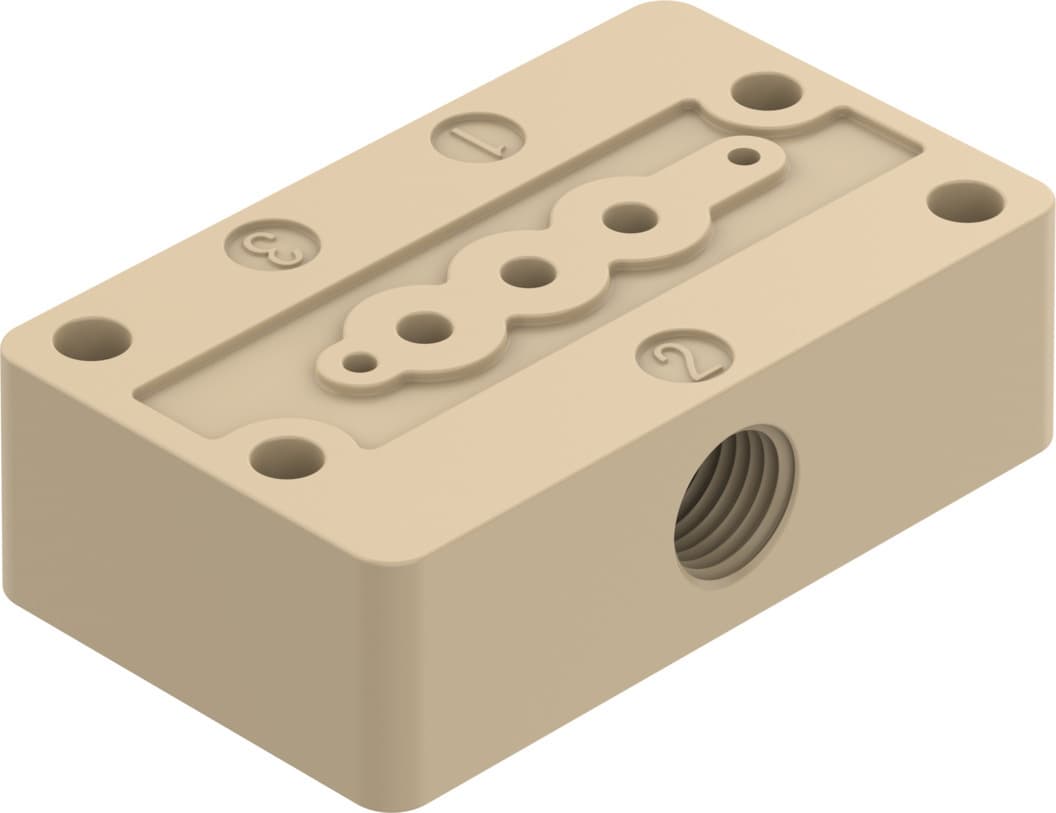

vabs-k2-12s-20-u14-p
Product ID:675
Updated: 2026/7/4
Key Features
- 1Ensure precise integration with a 2 mm nominal width.
- 2Connect reliably using the 1/4-28 UNF-2B female thread.
- 3Simplify mounting with the side connection direction.
- 4Handle diverse media including liquids and gases.
- 5Meet industrial standards with RoHS-compliant PEEK material.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Nominal width | 2mm |
| Fluid connector | Internal thread 1/4-28 UNF-2B | Mounting position | Any |
| Structural design | Connection direction at side | Max. no. of valve positions | 1 |
| Flow direction | Non-reversible | Operating medium | Liquid media Gaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 70°C |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.33Nm | Max. tightening torque | 0.6Nm |
| Product weight | 8g | Sub-base mounting type | With through-hole |
| Pneumatic valve mounting type | With internal thread | Note on materials | RoHS-compliant |
| Material of sub-base | PEEK | Manufacturer ID | 8140320 |
Specifications may be subject to change without notice
