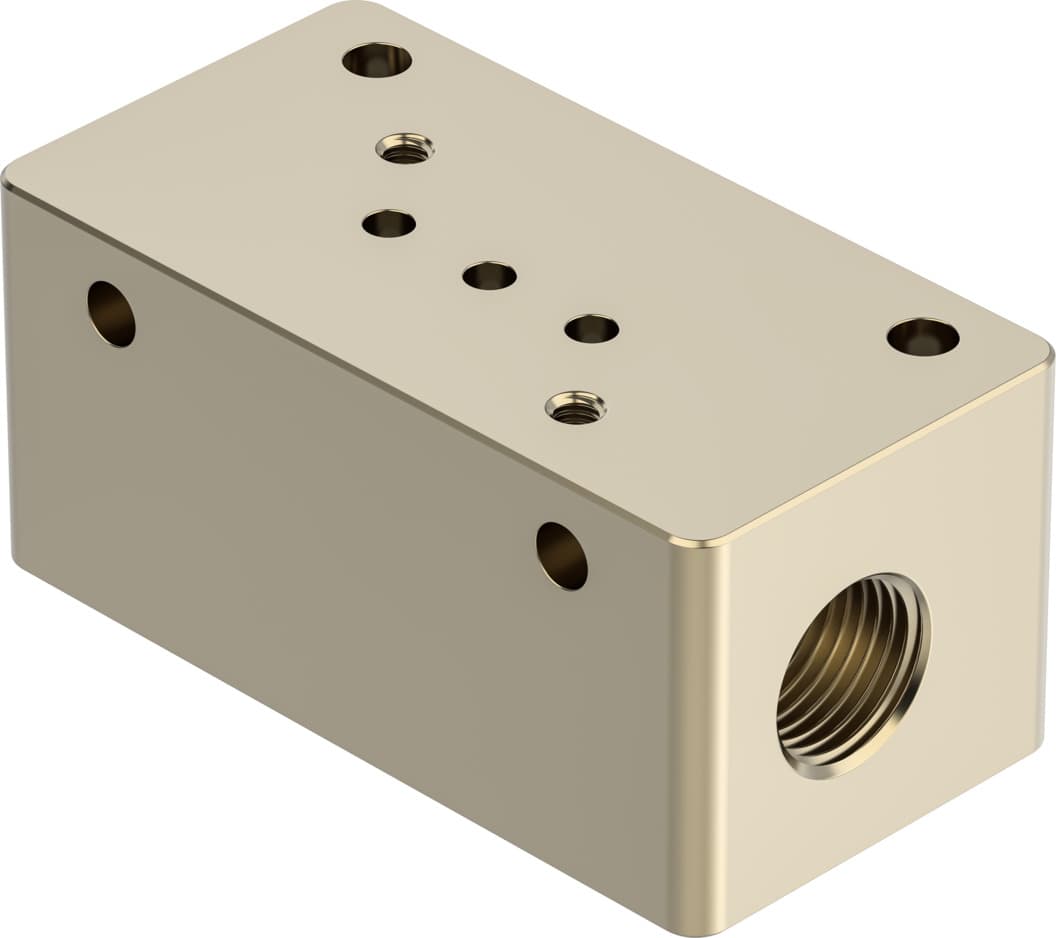

vabs-k3-16s-20-g18-p
Product ID:189
Updated: 2026/4/3
Key Features
- 1Mount pneumatic valves securely with a robust VABS-K3-16S-20-G18-P sub-base. 2、Ensure precise fit with 16mm nominal width and G1/8 internal thread. 3、Utilize RoHS-compliant PEEK for high corrosion resistance and durability. 4、Handle both liquid and gaseous media with reversible flow direction. 5、Achieve reliable connections with a 7 Nm tightening torque for fittings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Nominal width | 2mm |
| Valve size | 16mm | Fluid connector | Internal thread G1/8 |
| Mounting position | Any | Structural design | Connection direction at side |
| Max. no. of valve positions | 1 | Flow direction | Reversible |
| Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.3Nm | Max. tightening torque of pneumatic fitting | 7Nm |
| Max. tightening torque | 0.6Nm | Product weight | 26g |
| Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
| Note on materials | RoHS-compliant | Material of sub-base | PEEK |
| Manufacturer ID | 8186873 |
Specifications may be subject to change without notice
