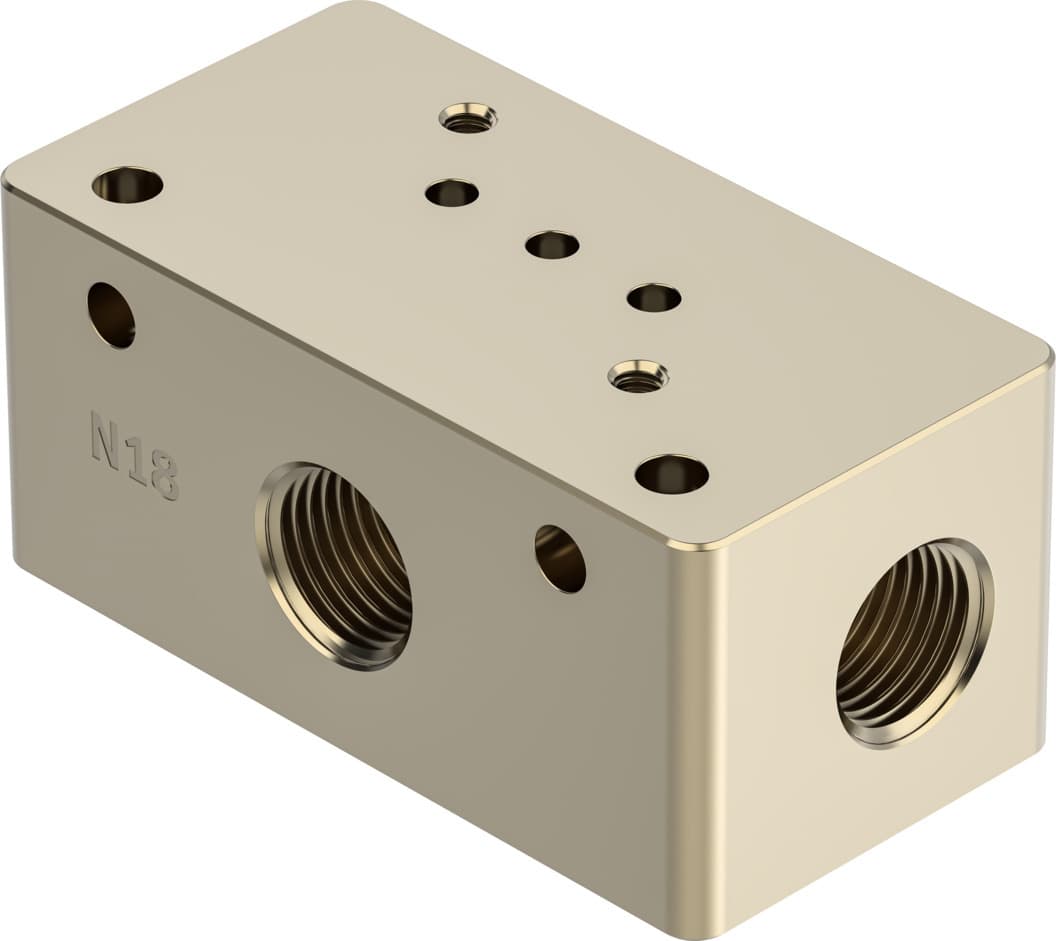

vabs-k3-16s-20-n18-p
Product ID:190
Updated: 2026/7/4
Key Features
- 1Ensure precise control in fluid media with reversible flow.
- 2Feature a 2 mm nominal width for versatile system integration.
- 3Construct from corrosion-resistant, RoHS-compliant PEEK material.
- 4Offer secure mounting with G1/8 thread and 7 Nm torque.
- 5Operate reliably in 0°C to 50°C for diverse media.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Nominal width | 2mm |
| Valve size | 16mm | Fluid connector | Internal thread 1/8 NPT |
| Mounting position | Any | Structural design | Connection direction at side |
| Max. no. of valve positions | 1 | Flow direction | Reversible |
| Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.3Nm | Max. tightening torque of pneumatic fitting | 7Nm |
| Max. tightening torque | 0.6Nm | Product weight | 26g |
| Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
| Note on materials | RoHS-compliant | Material of sub-base | PEEK |
| Manufacturer ID | 8186872 |
Specifications may be subject to change without notice
