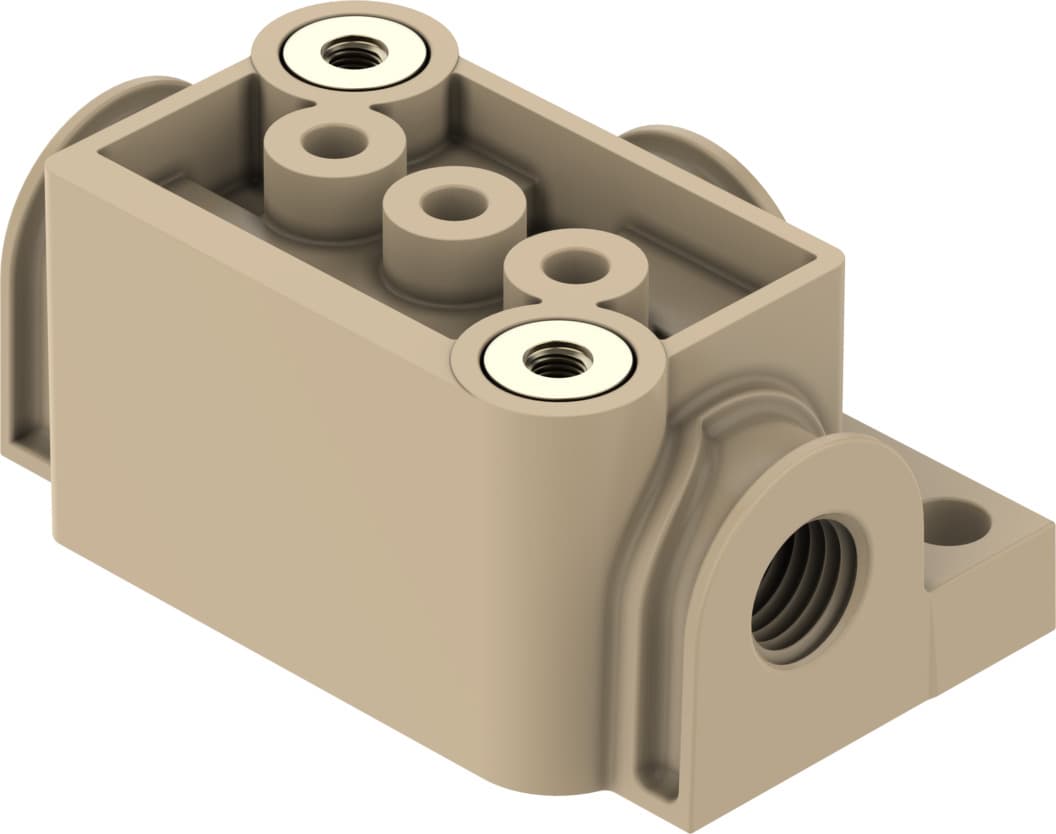

vabs-k3-16s-20-u14-p
Product ID:184
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly into pneumatic systems for high precision. 2、Feature a robust 1/4-24 UNF-2A internal thread. 3、Mount in any position for easy system adaptation. 4、Offer compact fluid management with a 2mm width. 5、Withstand temperatures from -20°C to 70°C reliably.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Nominal width | 2mm |
| Valve size | 16mm | Fluid connector | Internal thread 1/4-28 UNF-2B |
| Mounting position | Any | Structural design | Connection direction at side |
| Max. no. of valve positions | 1 | Flow direction | Reversible |
| Operating medium | Liquid media Gaseous media | Information on operating and pilot media | Observe resistance of materials that come into contact with media |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 70°C | For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Max. tightening torque for valve mounting | 0.3Nm | Max. tightening torque of pneumatic fitting | 0.5Nm |
| Max. tightening torque | 0.6Nm | Product weight | 9g |
| Sub-base mounting type | With through-hole | Pneumatic valve mounting type | With internal thread |
| Note on materials | RoHS-compliant | Material of sub-base | PEEK |
| Manufacturer ID | 8187600 |
Specifications may be subject to change without notice
