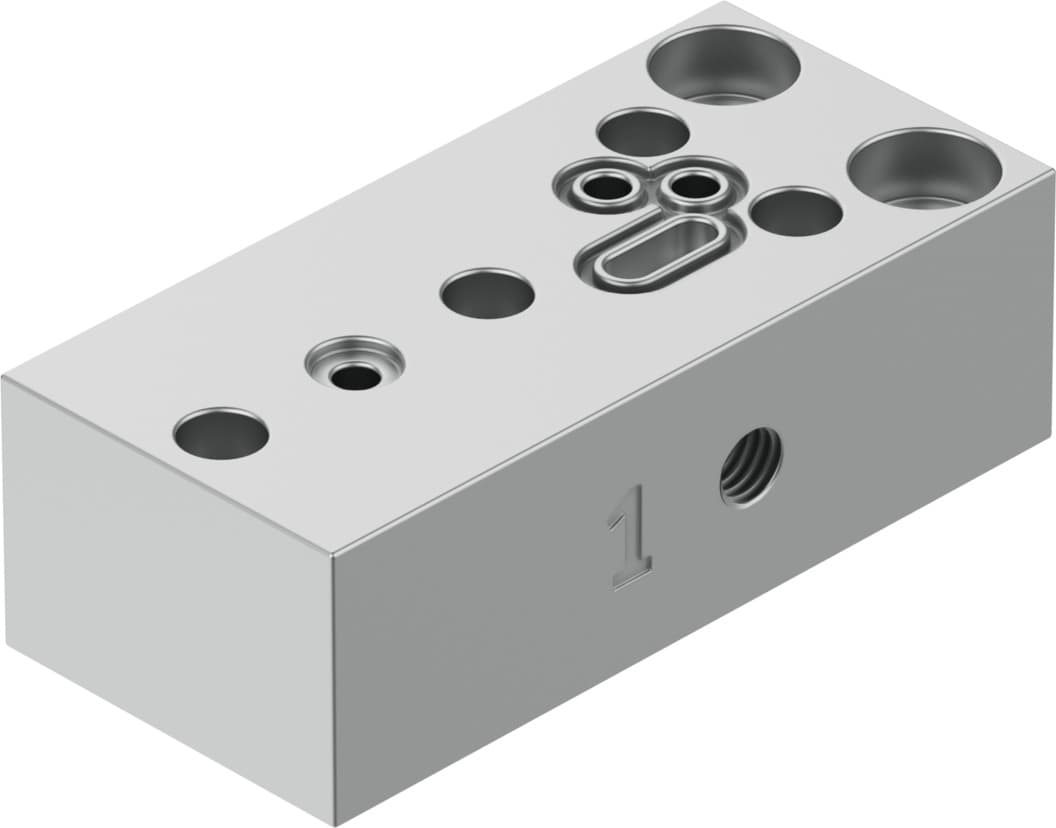

vabs-p12-s-m5-p3
Product ID:16219
Updated: 2026/7/4
Key Features
- 1Ensure safe operation in oxygen environments with DIN EN 1797 certification.
- 2Achieve moderate corrosion resistance (CRC 2) for enhanced durability.
- 3Deliver precise pneumatic control with a 27-28 l/min standard flow rate.
- 4Utilize anodized wrought aluminum alloy for strength and corrosion resistance.
- 5Integrate easily into compact systems with a 25 mm width design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 25mm | Mounting position | Any |
| Special features | Oxygen-compatible as per DIN EN 1797 | Max. no. of valve positions | 1 |
| Operating pressure | 0bar 1.7bar | Standard nominal flow rate | 27l/min |
| Standard nominal flow rate 2-3 | 28l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [5:3:1] Inert gas Oxygen |
| Information on operating and pilot media | Operation with oil lubrication not possible Maximum particle size 5 μm | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -20°C 70°C |
| Temperature of medium | -20°C 60°C | Relative air humidity | 0 - 70 % Non-condensing |
| Degree of protection | IP00 | Note on degree of protection | In mounted state |
| Ambient temperature | -20°C 70°C | Product weight | 55g |
| Type of mounting | With through-hole | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Pneumatic connection 2S | M5 |
| Pneumatic connection 3 | M5 | Pneumatic connection 5 | M5 |
| Note on materials | RoHS-compliant | Material of sub-base | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8068637 |
Specifications may be subject to change without notice
