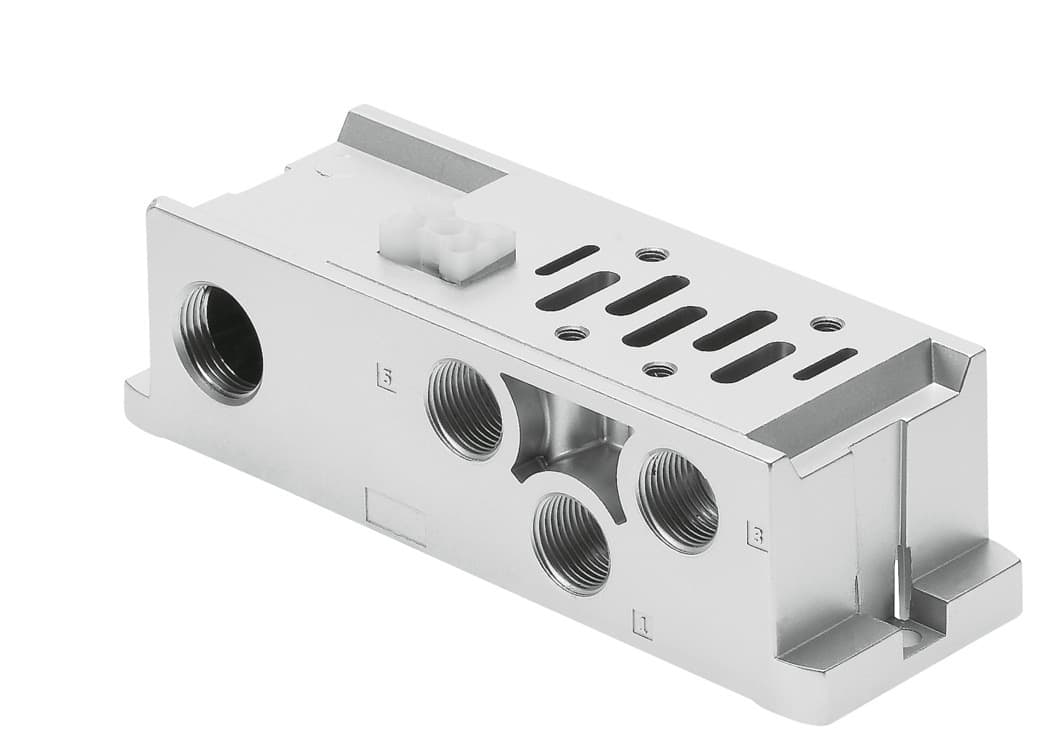

vabs-s2-1s-n38-c1
Product ID:11269
Updated: 2026/4/3
Key Features
- 1Ensure precise ISO 5599-2 fit with the 42mm wide VABS-S2-1S-N38-C1. 2、Mount flexibly in any position for versatile system design. 3、Operate reliably across a broad -0.9 to 10 bar pressure range. 4、Protect against harsh conditions with IP65 and NEMA 4 ratings. 5、Simplify maintenance with a robust, RoHS-compliant pneumatic design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pilot air supply port | External |
| Operating pressure | -0.9bar 10bar | Operating voltage range AC | 110V |
| DC operating voltage range | 24V | Surge resistance | 4kV |
| Current rating at 40° C | 2A | Contamination level | 3 |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 In mounted state |
| Ambient temperature | -5°C 50°C | Product weight | 371g |
| Connection cross section | 0.08mm2 0.75mm2 | Type of mounting | With through-hole |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Manufacturer ID | 546761 |
Specifications may be subject to change without notice
