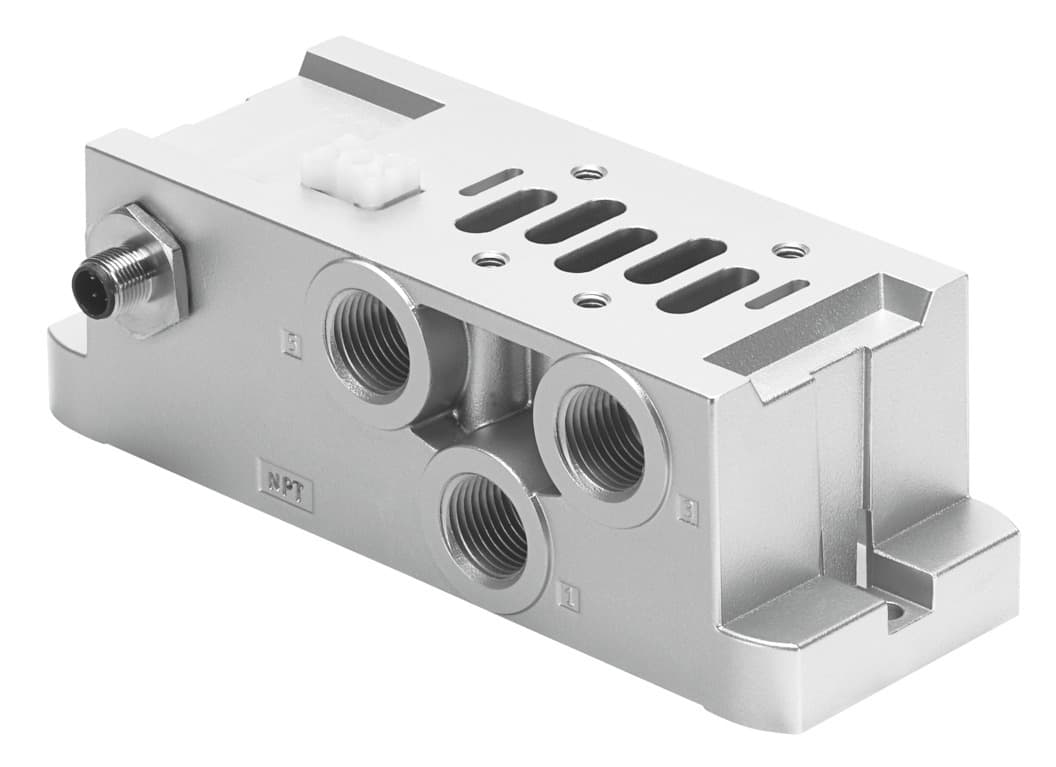

vabs-s2-2s-g12-r3-ex1e
Product ID:15543
Updated: 2026/4/3
Key Features
- 1Save space with a compact 52mm construction width. 2、Ensure reliability by meeting ISO 5599-2 standards. 3、Operate safely in explosive Zone 2 ATEX environments. 4、Install flexibly with optional mounting positions. 5、Rely on robust die-cast aluminum and IP65 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 52mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pilot air supply port | External |
| Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
| Surge resistance | 0.8kV | Current rating at 40° C | 2A |
| Contamination level | 3 | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Explosion prevention and protection | Zone 2 (ATEX) | ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T3 X Gc | Explosive ambient temperature | -5°C <= Ta <= +50°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 In mounted state | Ambient temperature | -5°C 50°C |
| Product weight | 815g | Electrical connection | Round plug M12x1.5 |
| Type of mounting | With through-hole | Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum | Manufacturer ID | 8033161 |
Specifications may be subject to change without notice
