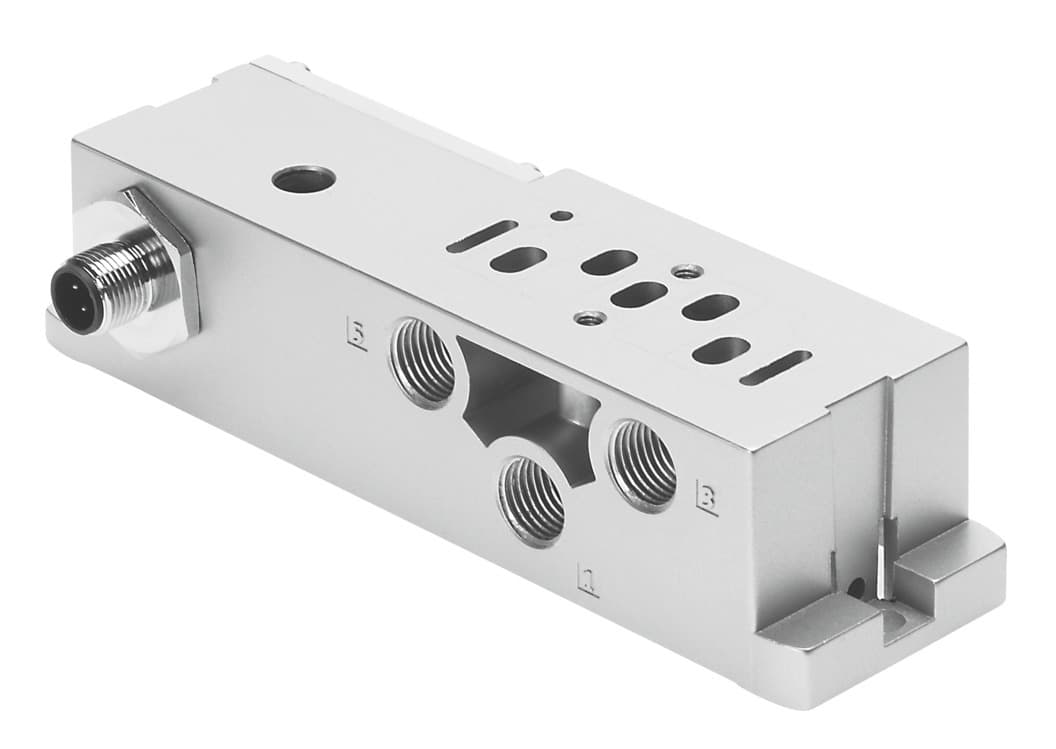

vabs-s4-1s-g14-b-r3-ex1e
Product ID:15540
Updated: 2026/7/4
Key Features
- 1Ensure compatibility with the ISO 15407-2 port pattern for standard systems.
- 2Simplify installation using the internal pilot air supply port.
- 3Rely on robust die-cast aluminum construction for durability.
- 4Operate across a wide pressure range from -0.09 to 10 bar.
- 5Meet strict safety standards with ATEX and EU compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Pilot air supply port | Internal |
| Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
| Surge resistance | 0.8kV | Current rating at 40° C | 2A |
| Contamination level | 3 | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU low voltage directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions To UK instructions for electrical equipment | Explosion protection certification outside the EU | EPL Gc (GB) |
| Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) | ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex ec IIC T3 Gc X | Explosive ambient temperature | -5°C <= Ta <= +50°C |
| Explosion group of assembly | IIC | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. surface temperature of assembly | T3 |
| Degree of protection | IP65 NEMA 4 In mounted state | Ambient temperature | -5°C 50°C |
| Product weight | 302g | Type of mounting | With through-hole as per ISO 15407-2 |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Manufacturer ID | 8033158 |
Specifications may be subject to change without notice
