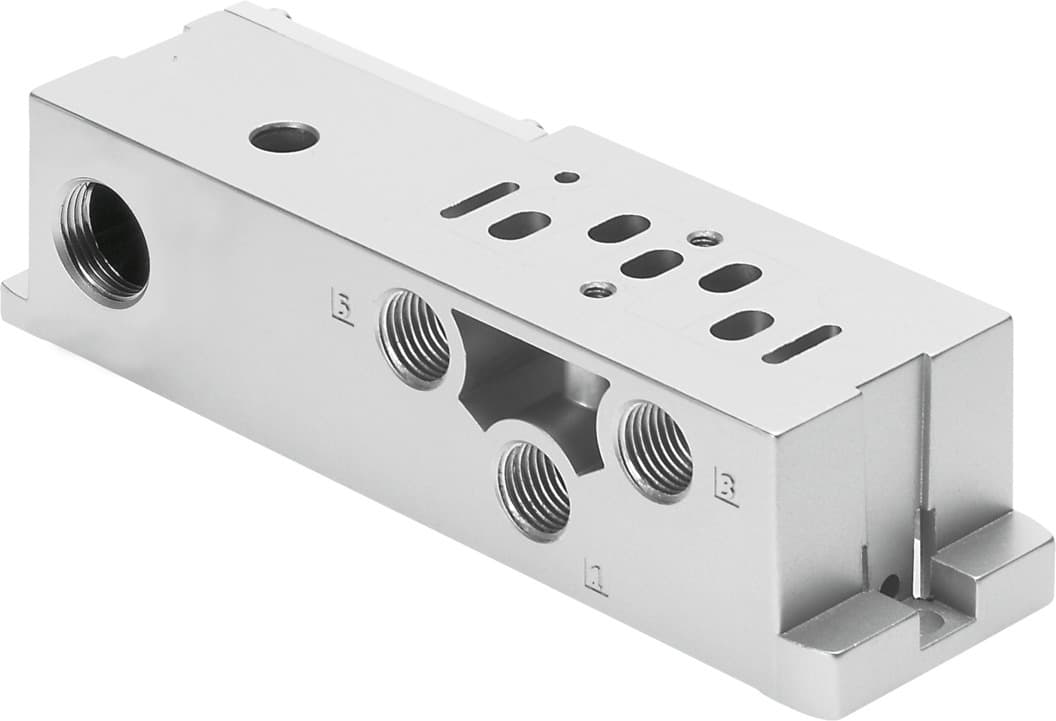

vabs-s4-1s-n14-k2
Product ID:10506
Updated: 2026/4/3
Key Features
- 1Feature internal pilot air supply for efficient system control. 2、Support operating pressures from -0.9 to 10 bar. 3、Construct with durable, corrosion-resistant die-cast aluminum. 4、Comply with ISO 8573-1:2010 and key EU directives. 5、Withstand harsh conditions with IP65/NEMA 4 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Pilot air supply port | External |
| Operating pressure | -0.9bar 10bar | DC operating voltage range | 24V |
| Surge resistance | 4kV | Current rating at 40° C | 2A |
| Contamination level | 3 | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) As per EU low voltage directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK RoHS instructions To UK instructions for electrical equipment | Explosion protection certification outside the EU | EPL Gc (GB) |
| Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) | ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex ec IIC T3 Gc X | Explosion group of assembly | IIC |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. surface temperature of assembly | T3 | Degree of protection | IP65 NEMA 4 In mounted state |
| Ambient temperature | -5°C 50°C | Product weight | 302g |
| Type of mounting | With through-hole as per ISO 15407-2 | Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum | Manufacturer ID | 539726 |
Specifications may be subject to change without notice
