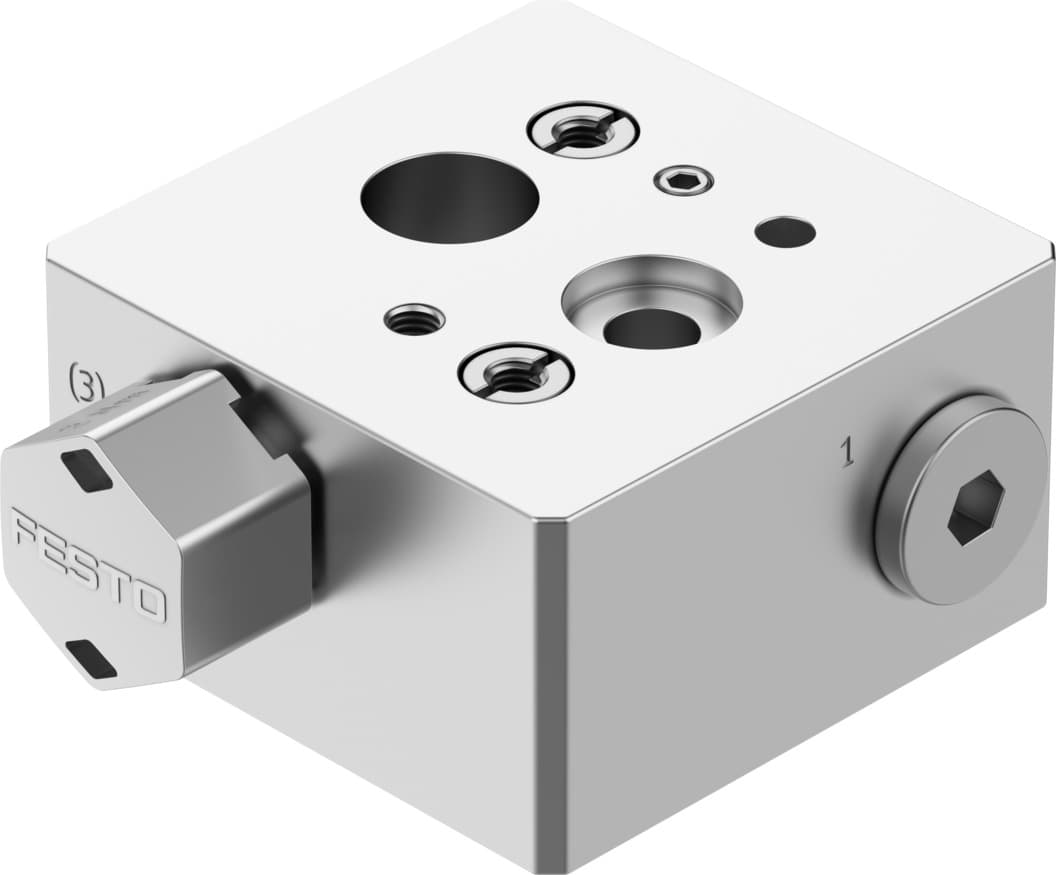

vabs-s7-be-bs-g14-v14
Product ID:16242
Updated: 2026/4/3
Key Features
- 1Utilize Ematal-coated aluminum for very high corrosion stress (CRC 4). 2、Meet Zone 1, 2, 21, and 22 ATEX explosion protection standards. 3、Equip with G1/4 ports and VDI/VDE 3847 compliant connections. 4、Integrate easily into systems with a light weight of 362 grams. 5、Ensure reliable operation with excellent dust and water ingress protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Operating pressure | 0bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 In mounted state |
| Product weight | 330g | Type of mounting | With through-hole and screw |
| Pilot air port 12 | G1/4 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | Flange 1/4 with NAMUR port pattern | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Material of sub-base | Aluminum, ematal coated |
| Seals material | NBR | Manufacturer ID | 8072668 |
Specifications may be subject to change without notice
