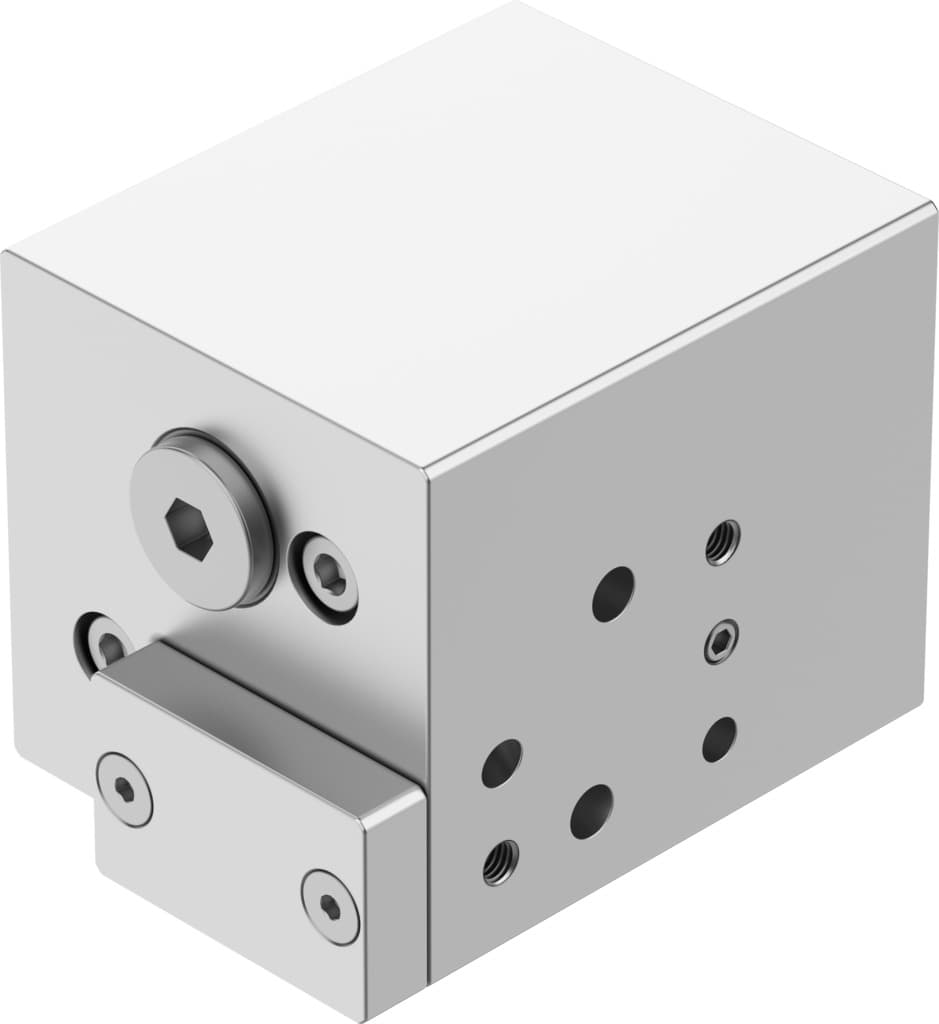

vabs-s7-rb-b-g14-r12
Product ID:668
Updated: 2026/4/3
Key Features
- 1Choose optional mounting positions for easy system integration. 2、Utilize the internal pilot air supply to minimize external connections. 3、Operate across a 0-10 bar pressure range for versatile applications. 4、Meet ATEX Zone 1/2 standards for hazardous area safety. 5、Rely on ematal-coated aluminum for high corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pilot air supply port | External Internal |
| Operating pressure | 0bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 In mounted state | Product weight | 750g |
| Type of mounting | With through-hole | Pilot air port 12 | G1/4 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 with NAMUR port pattern |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Material of sub-base | Aluminum, ematal coated | Seals material | NBR |
| Manufacturer ID | 8141067 |
Specifications may be subject to change without notice
