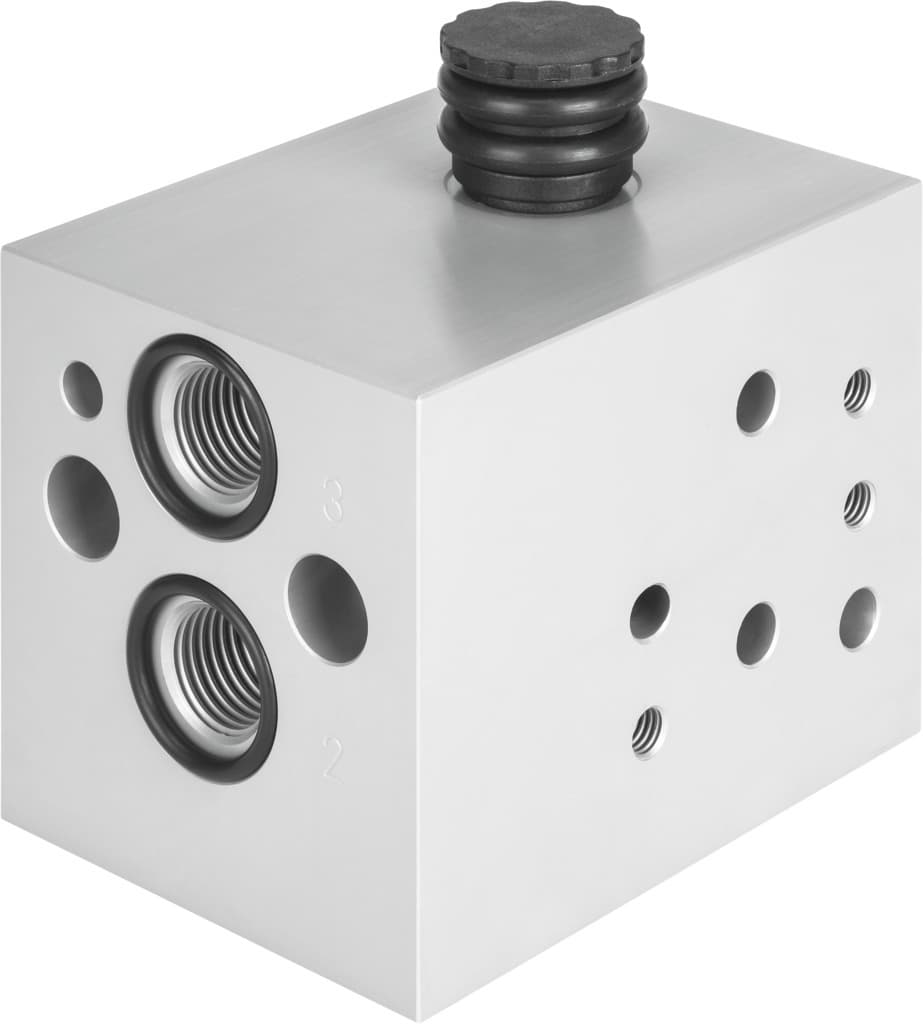

vabs-s7-rb-b-g14-v14
Product ID:8288
Updated: 2026/4/3
Key Features
- 1Withstand very high corrosion stress with class 4 resistance. 2、Ensure safety in explosive Zone 1 and 2 ATEX environments. 3、Protect against dust and water ingress with an IP65 rating. 4、Mount in any position for flexible system integration. 5、Operate with standard compressed air per ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pilot air supply port | External Internal |
| Operating pressure | 0bar 10bar | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
| Type of mounting | With through-hole | Pilot air port 12 | G1/4 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Material of sub-base | Aluminum, ematal coated | Seals material | NBR |
| Manufacturer ID | 3580505 |
Specifications may be subject to change without notice
