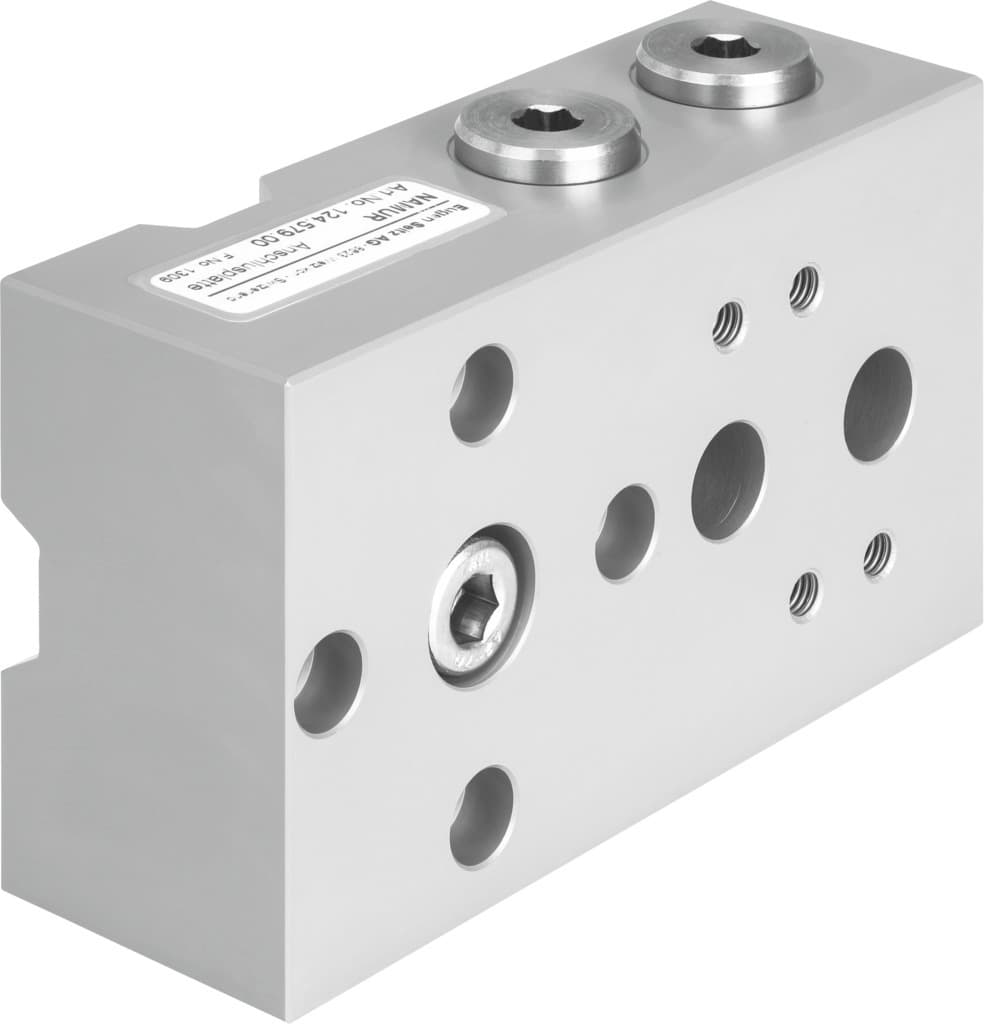

vabs-s7-s-g14
Product ID:13091
Updated: 2026/4/4
Key Features
- 1Utilize durable aluminum housing with ematal coating for corrosion resistance. 2、Connect via G1/4 and Flange 1/4 ports with NAMUR wiring. 3、Achieve IP65 protection against dust and water ingress. 4、Mount in any position for flexible system design. 5、Comply with RoHS environmental standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Operating pressure | 0bar 10bar |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 | Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Plate material | Aluminum, ematal coated |
| Manufacturer ID | 563396 |
Specifications may be subject to change without notice
