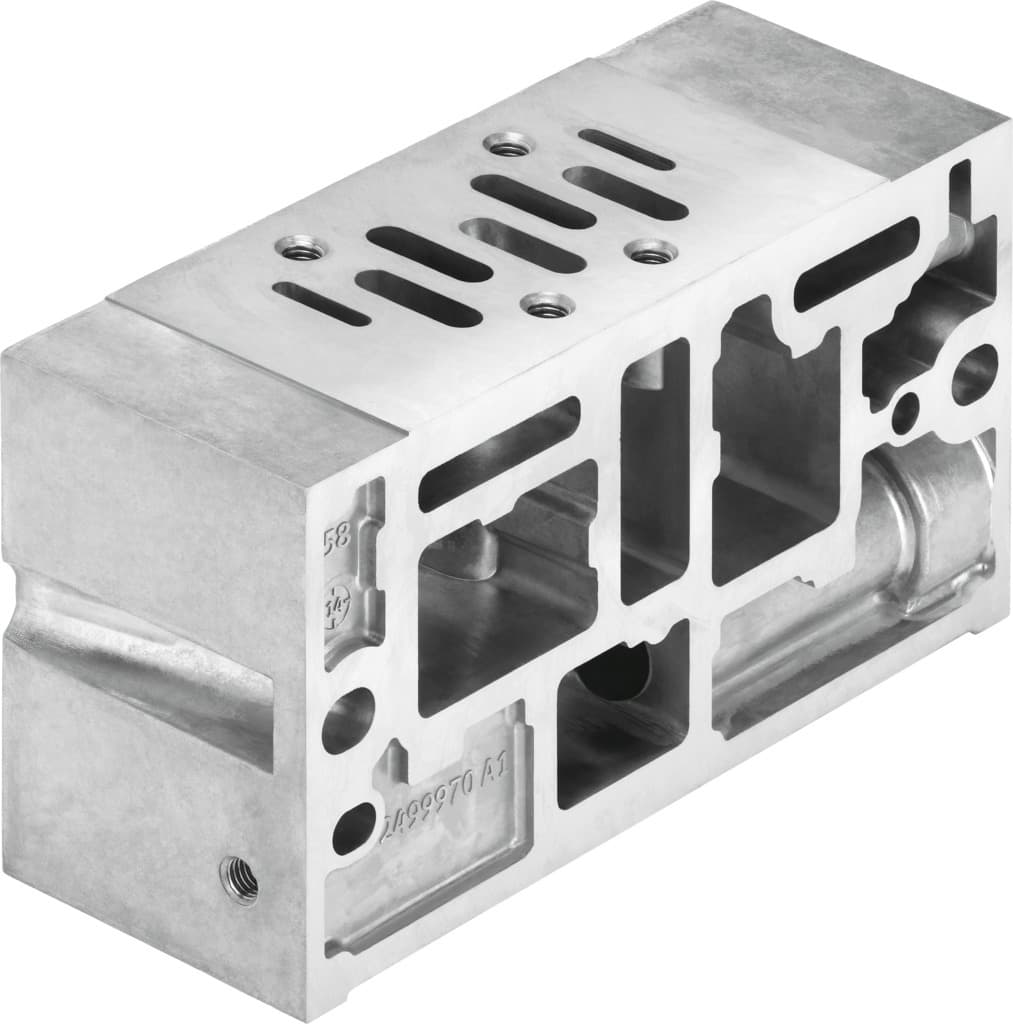

vabv-s1-1sb-n38
Product ID:15366
Updated: 2026/4/3
Key Features
- 1Ensure high-quality performance with ISO 5599-1 compliance. 2、Utilize durable die-cast aluminum construction for corrosion resistance. 3、Integrate easily using standard 3/8 NPT connections. 4、Operate versatilely in both compressed air and vacuum applications. 5、Meet EU safety and environmental standards with CE and RoHS.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
| Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 50°C | Product weight | 490g |
| Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 4 | 3/8 NPT |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Manufacturer ID | 8029813 |
Specifications may be subject to change without notice
