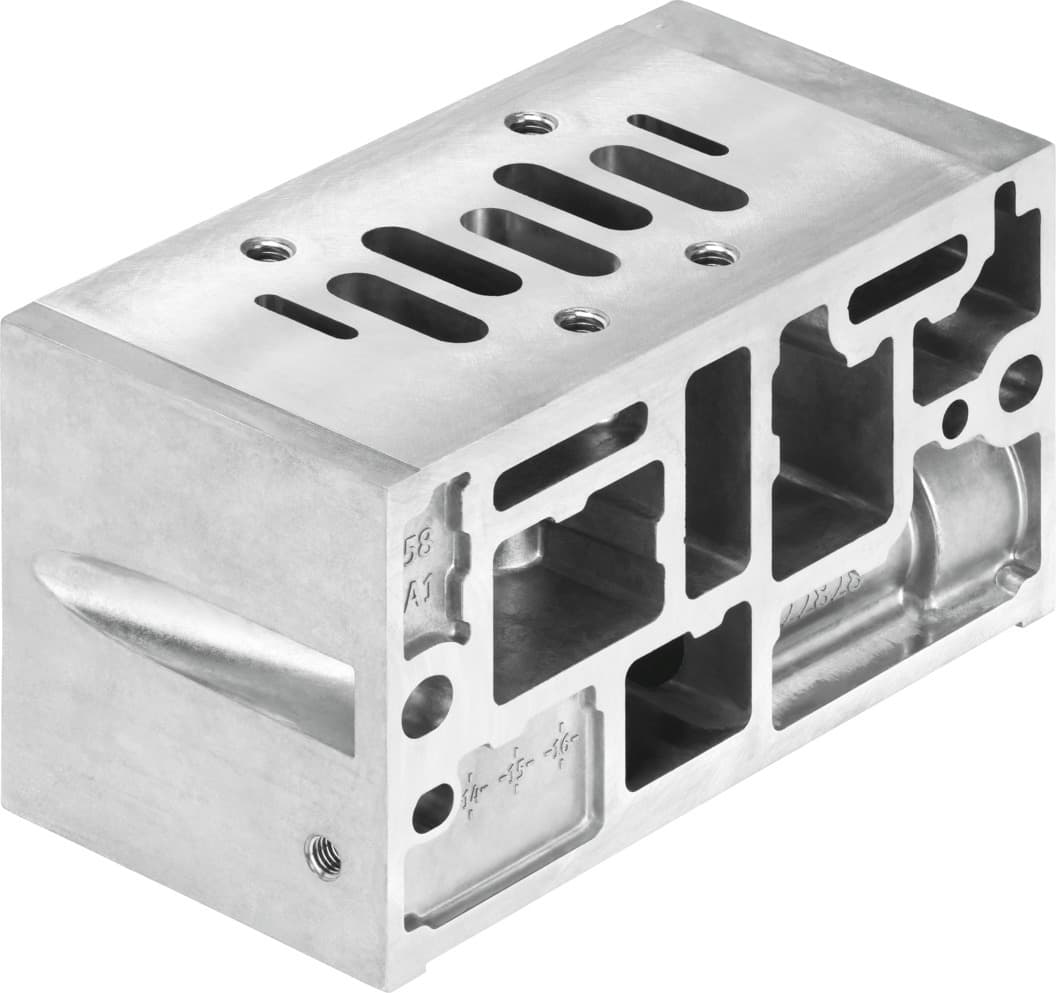

vabv-s1-2sb-g12
Product ID:15367
Updated: 2026/7/4
Key Features
- 1Ensure precise pneumatic control via an integrated throttle plate.
- 2Meet ISO 5599-1 standards for guaranteed compatibility.
- 3Save space with a compact 59 mm width design.
- 4Handle one valve position for simple, robust applications.
- 5Resist corrosion with durable die-cast aluminum construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 59mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
| Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 50°C | Product weight | 670g |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Manufacturer ID | 8029814 |
Specifications may be subject to change without notice
