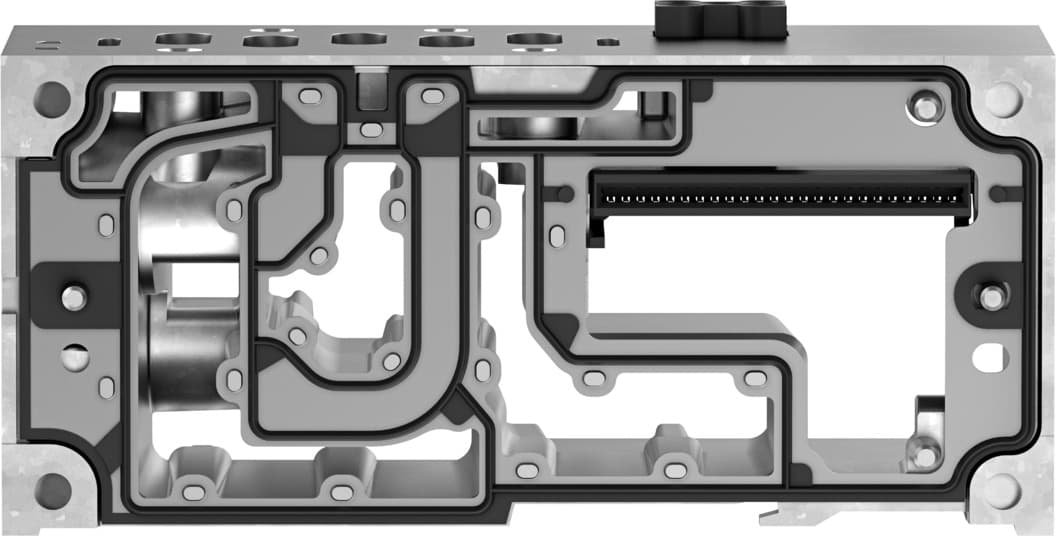

vabv-s2-2s-g12-cb-t2
Product ID:16211
Updated: 2026/4/3
Key Features
- 1Meet EU low voltage and UKCA marking standards for compliance. 2、Achieve corrosion resistance class 0 for zero corrosion stress. 3、Feature two G1/2 pneumatic connections for versatile setup. 4、Construct from die-cast aluminum for durability and strength. 5、Comply with RoHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 59mm | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 610g |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliant | Plate material | Die-cast aluminum |
| Manufacturer ID | 8068146 |
Specifications may be subject to change without notice
