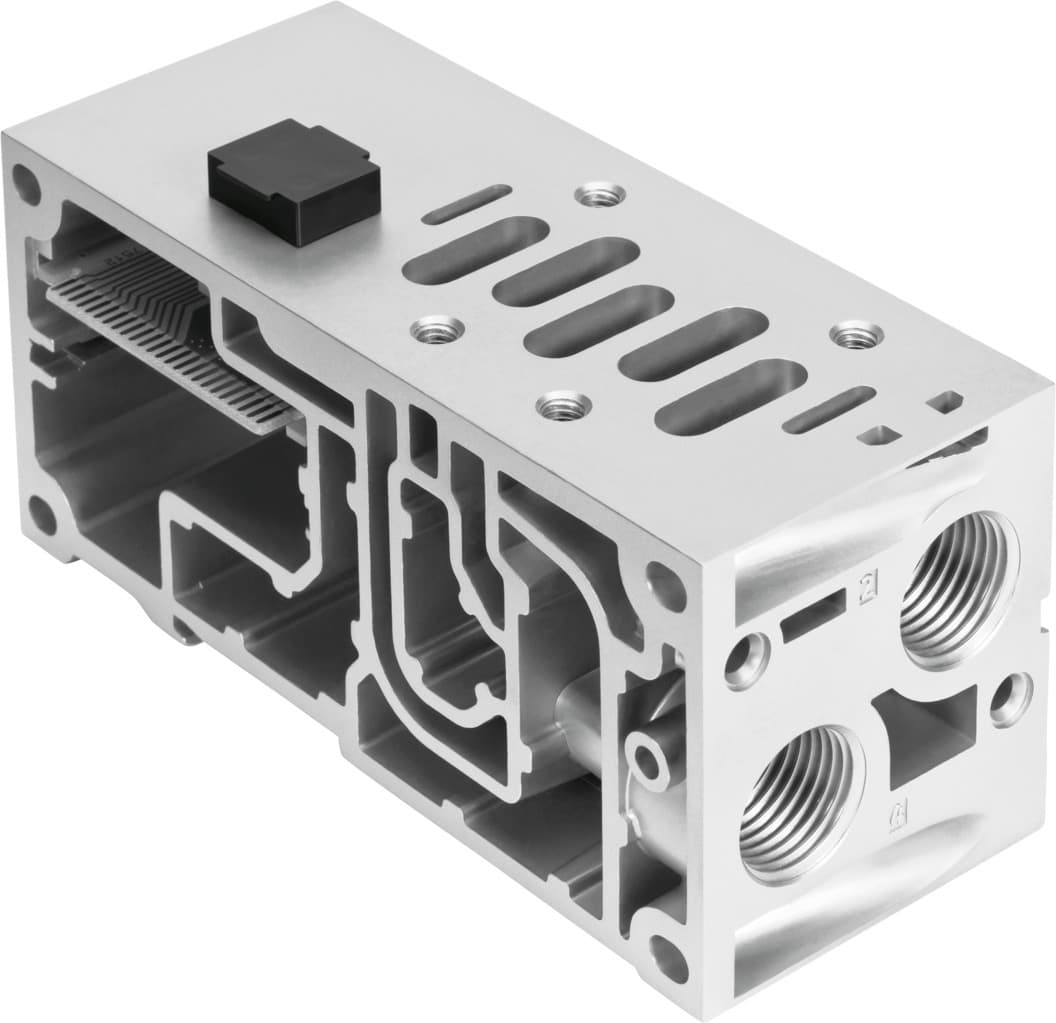

vabv-s2-2s-n12-t2
Product ID:12988
Updated: 2026/4/4
Key Features
- 1Maximize space efficiency with a compact 59mm width design. 2、Ensure durability using a die-cast aluminum plate material. 3、Simplify system integration with standard 1/2 NPT pneumatic connections. 4、Handle diverse applications with a -0.09 to 1 MPa operating range. 5、Meet safety and export standards with CE marking and RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 59mm | Valve terminal type | 44 |
| Operating pressure | -0.9bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 610g |
| Pneumatic connection 2 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
| Note on materials | RoHS-compliant | Plate material | Die-cast aluminum |
| Manufacturer ID | 560843 |
Specifications may be subject to change without notice
