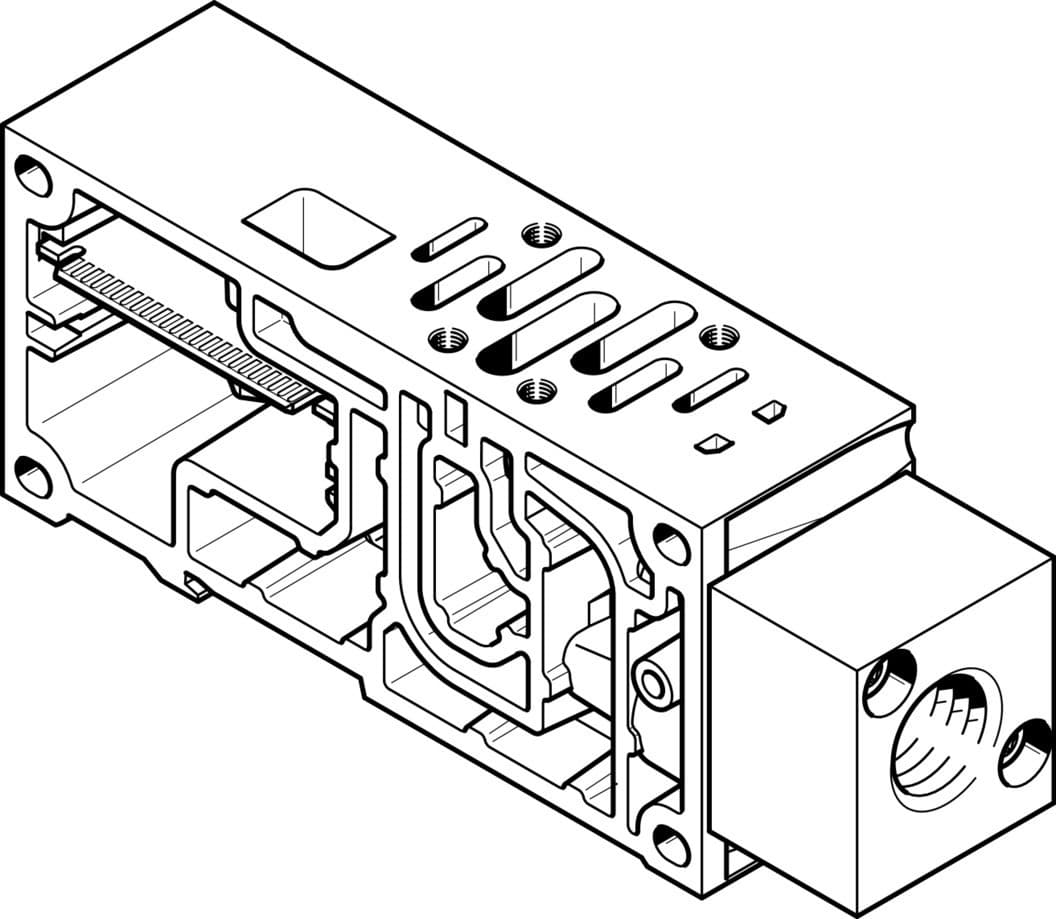

vabv-s6-1q-g12
Product ID:12478
Updated: 2026/7/15
Key Features
- 1Withstand high vibration and shock for reliable performance.
- 2Feature a compact 43mm width for efficient design.
- 3Construct with robust, RoHS-compliant die-cast aluminum.
- 4Meet CE and EU Low Voltage Directive safety standards.
- 5Handle frequent switching for high operational reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 43mm | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Note on forced dynamization | Switching frequency at least once a month |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 570g |
| Pneumatic connection 1 | G1/2 | Note on materials | RoHS-compliant |
| Plate material | Die-cast aluminum | Manufacturer ID | 556989 |
Specifications may be subject to change without notice
