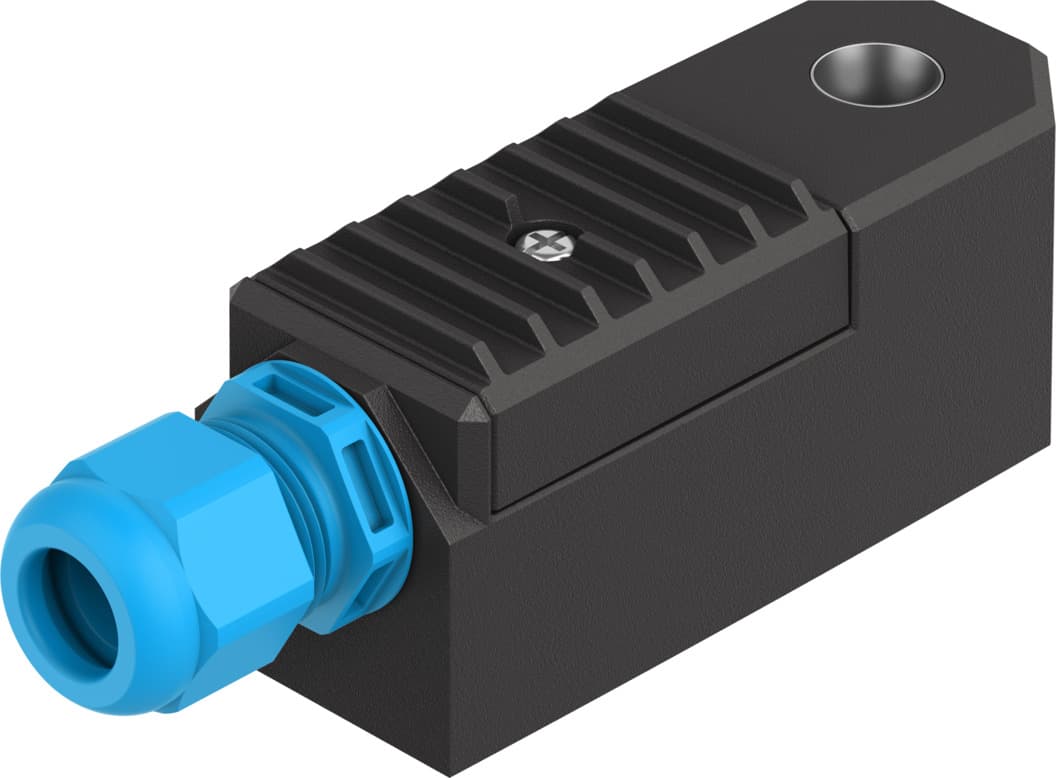

vacc-s13-11-k4-1-ex4a
Product ID:16711
Updated: 2026/4/3
Key Features
- 1Operate safely in explosive gas and dust atmospheres with ATEX certification. 2、Power flexibly with a 14 to 32 V DC operating voltage range. 3、Ensure reliability via certified intrinsically safe circuits. 4、Benefit from durable polyamide 6 housing and sealing. 5、Integrate easily with Festo valves to minimize setup time.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Switching position indication | no | Duty cycle | 100% |
| Required current consumption | 0.016A | Insulation class | H |
| Max. input power Pi | 1.2 W | Max. input voltage Vi | 32 V |
| Max. input current Ii | 0.2 A | Coil characteristics | 14-32 V DC: 0.22 - 1.1 W |
| Effective internal capacitance Ci | Negligibly low | Effective internal inductance Li | Negligibly low |
| Permissible voltage fluctuations | -15 % / +10 % | CE marking (see declaration of conformity) | As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | as per UK instructions for EMC (UK-E) as per UK EX instructions (UK-X) as per UK RoHS instructions (UK-R) | Explosion protection certification outside the EU | EPL Db (GB) EPL Db (IEC-EX) EPL Gb (GB) EPL Gb (IEC-EX) |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (IEC-EX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (IEC-EX) Zone 21 (UKEX) Zone 22 (ATEX) | Certificate issuing authority | BVS 15 ATEX E 030 X IECEx BVS 15.0020 X TüV 21 UKEX 7016 X |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex ia IIC T5/T6 Gb | Type of (ignition) protection for dust | Ex ia IIIC T95°C/T80°C IP65 Db |
| Explosive ambient temperature | T5/T95°C: -30°C <= Ta <= +65°C T6/T80°C: -30°C <= Ta <= +50°C | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 | Product weight | 330g |
| Electrical connection | Terminal box, cable entry thread M20x1.5 | Note on materials | RoHS-compliant |
| Manufacturer ID | 8109401 |
Specifications may be subject to change without notice
